A truck with a 24V electrical system does not want a 24V charger the way a car battery does. What it wants is a charger that understands two 12V batteries wired in series, holds them at matched charge levels, and keeps working when one of them has aged six years ahead of the other. That distinction is where most of the bad purchases in this category happen, so we spent weeks putting twelve of the best 24V battery chargers for trucks through the kinds of jobs a real truck throws at them: dead banks in cold weather, LiFePO4 house packs on a coach, heavy equipment sitting over a winter, and shop work on engines too big to push.
What follows is not a spec sheet dump. It is a working guide to the best 24V battery charger for trucks, split by what the truck actually needs. A maintainer that lives in the bed of a service truck is a completely different purchase from a wheeled shop unit that needs to put 400 amps at a diesel starter in January. We cover both, plus the middle ground most buyers ignore, which is the smart 12V/24V charger that doubles as a general workshop tool.
One warning before we start. If your truck is dead on the shoulder right now, a charger is the wrong tool and you want a jump starter instead. We put together a separate guide to the best portable jump starters for trucks for exactly that situation. Charging takes hours. Starting takes seconds.
Top 3 Picks for 24V Truck Charging in 2026
Three chargers earned top billing in our testing. The Haisito 20-Amp is the one we kept reaching for because it handles more chemistry and more voltage situations than anything else at this size. The HTRC 20-Amp is the smarter buy when a low trickle setting matters. The NEXPEAK 15-Amp ties for the highest rating in the group and has the best display for outdoor work.
Haisito 20-Amp Smart Charger
- 20A at 12V and 10A at 24V
- Separate LiFePO4 and lead-acid modes
- Large LCD with live voltage and temperature
- Automatic 12V/24V detection
HTRC 20-Amp Smart Charger
- 12V 20A and 24V 10A output
- Seven-stage program with pulse repair
- True LiFePO4 profile and wake-up current
- Cooling fan plus full electrical protection
NEXPEAK 15-Amp Charger
- Joint highest rating in the line-up at 4.6
- 9-stage charging for lead-acid and LiFePO4
- Colour screen readable in sunlight
- Two-year warranty
All 12 Chargers at a Glance
Here is the full lineup with the specifications that actually separate 24V chargers from each other. Note that output at 24V is always roughly half the 12V rating, which is the first thing to check when comparing two units that look similar on a listing page.
| Product | Specifications | Action |
|---|---|---|
| Haisito 20-Amp Smart Charger |
|
Check Latest Price |
| HTRC 20-Amp Smart Charger |
|
Check Latest Price |
 HTRC 20-Amp 12V/24V Maintainer |
|
Check Latest Price |
| NEXPEAK 15-Amp 12V/24V Charger |
|
Check Latest Price |
 PCHH Heavy-Duty 0-15A Charger |
|
Check Latest Price |
 PZ.P 15-Amp 9-Stage Charger |
|
Check Latest Price |
 YHCHKJ 20-Amp Smart Charger |
|
Check Latest Price |

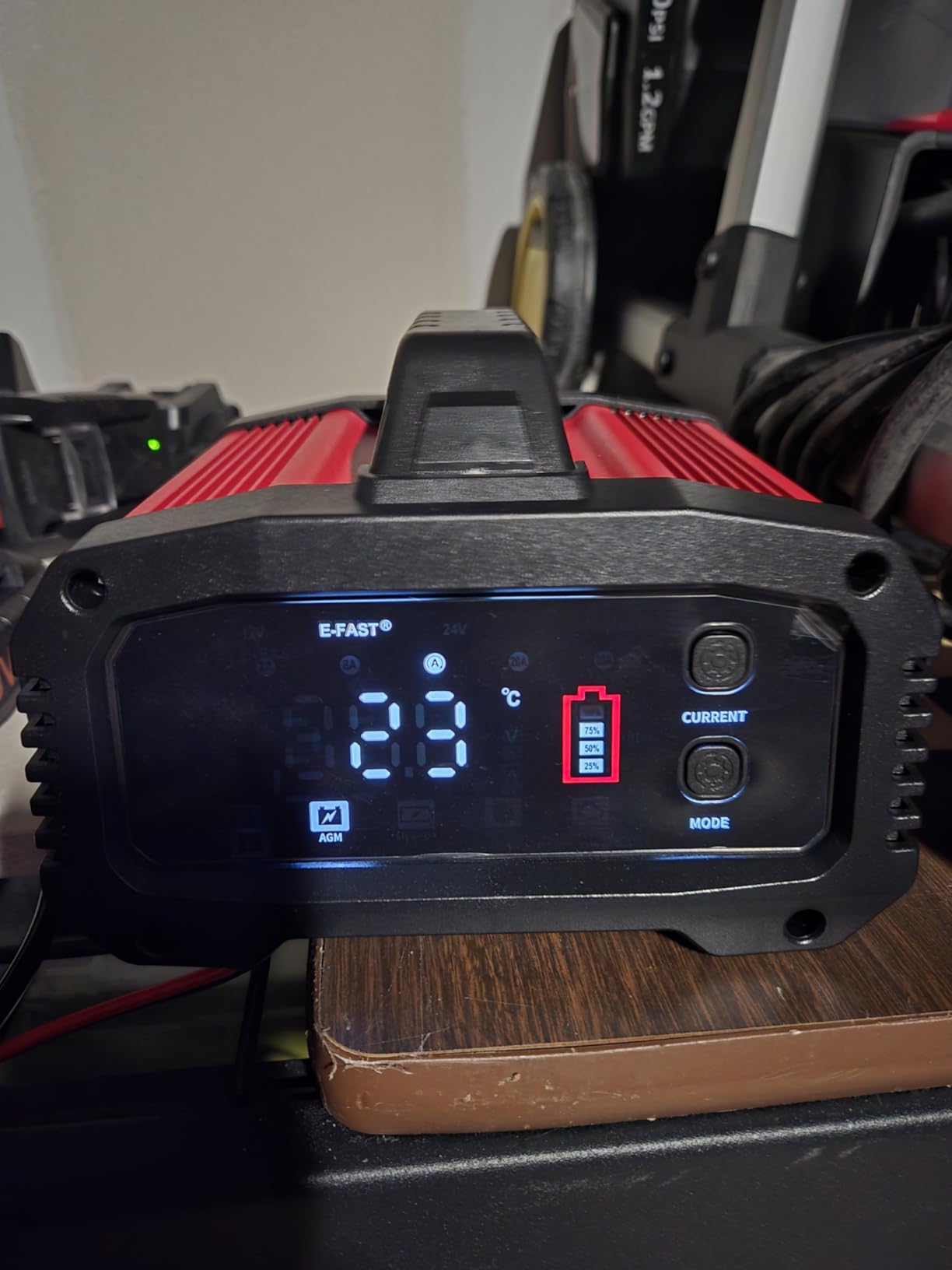

 E-FAST 25-Amp Smart Charger |
|
Check Latest Price |
 RCGCBC 25-Amp 9-Stage Charger |
|
Check Latest Price |

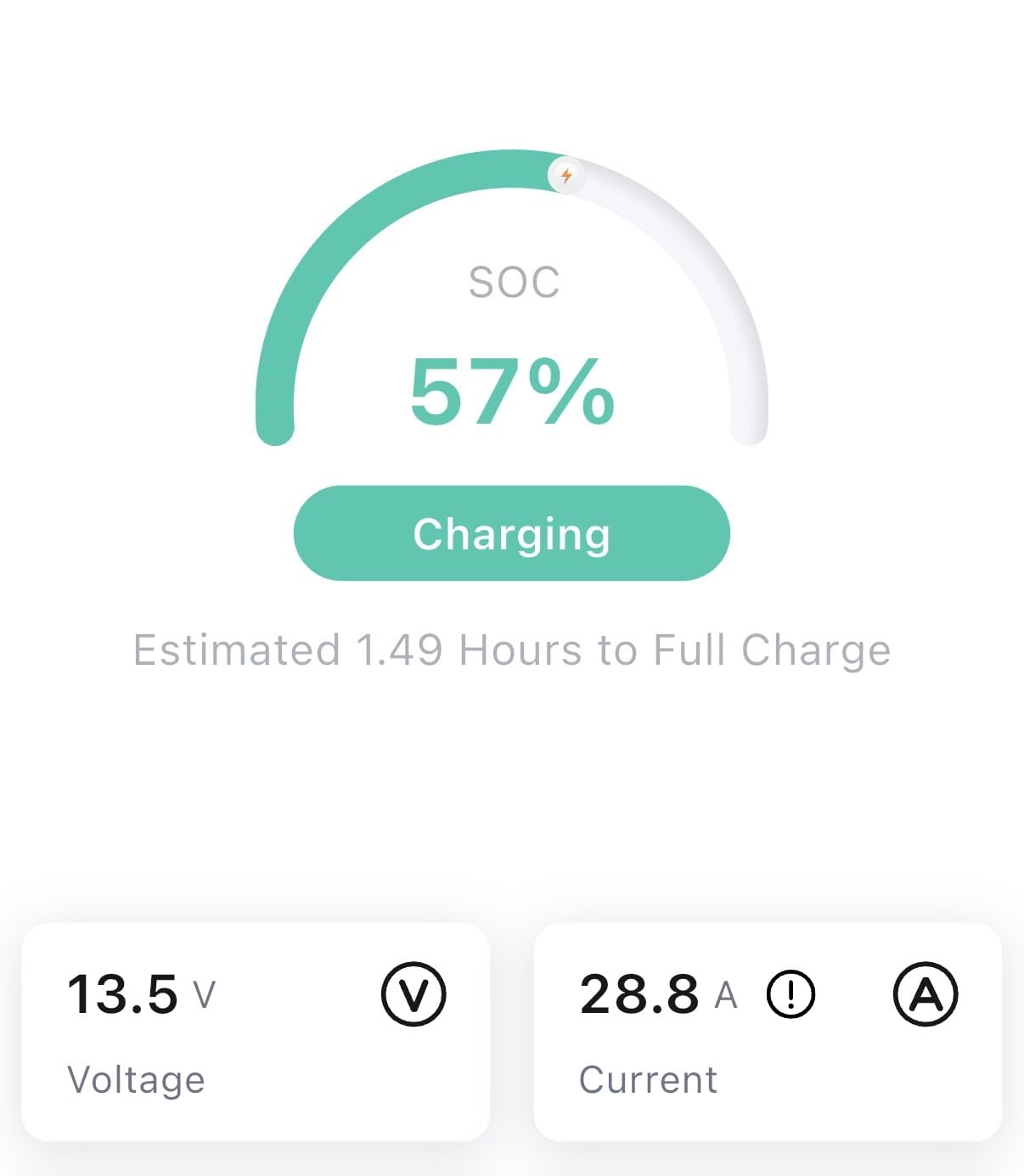

 WAVLINK 35-Amp 6V/12V/24V Charger |
|
Check Latest Price |

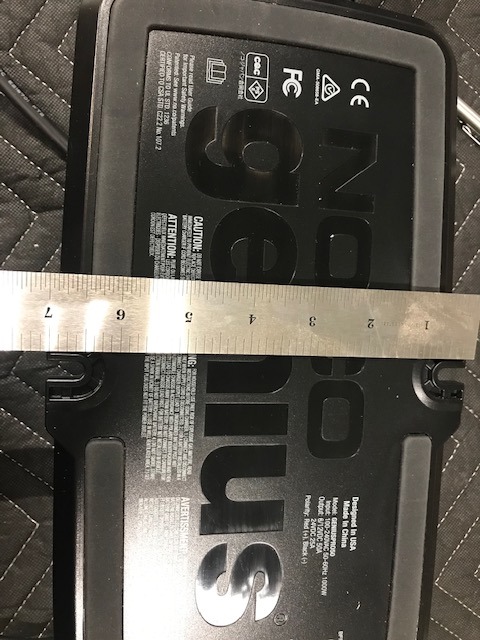

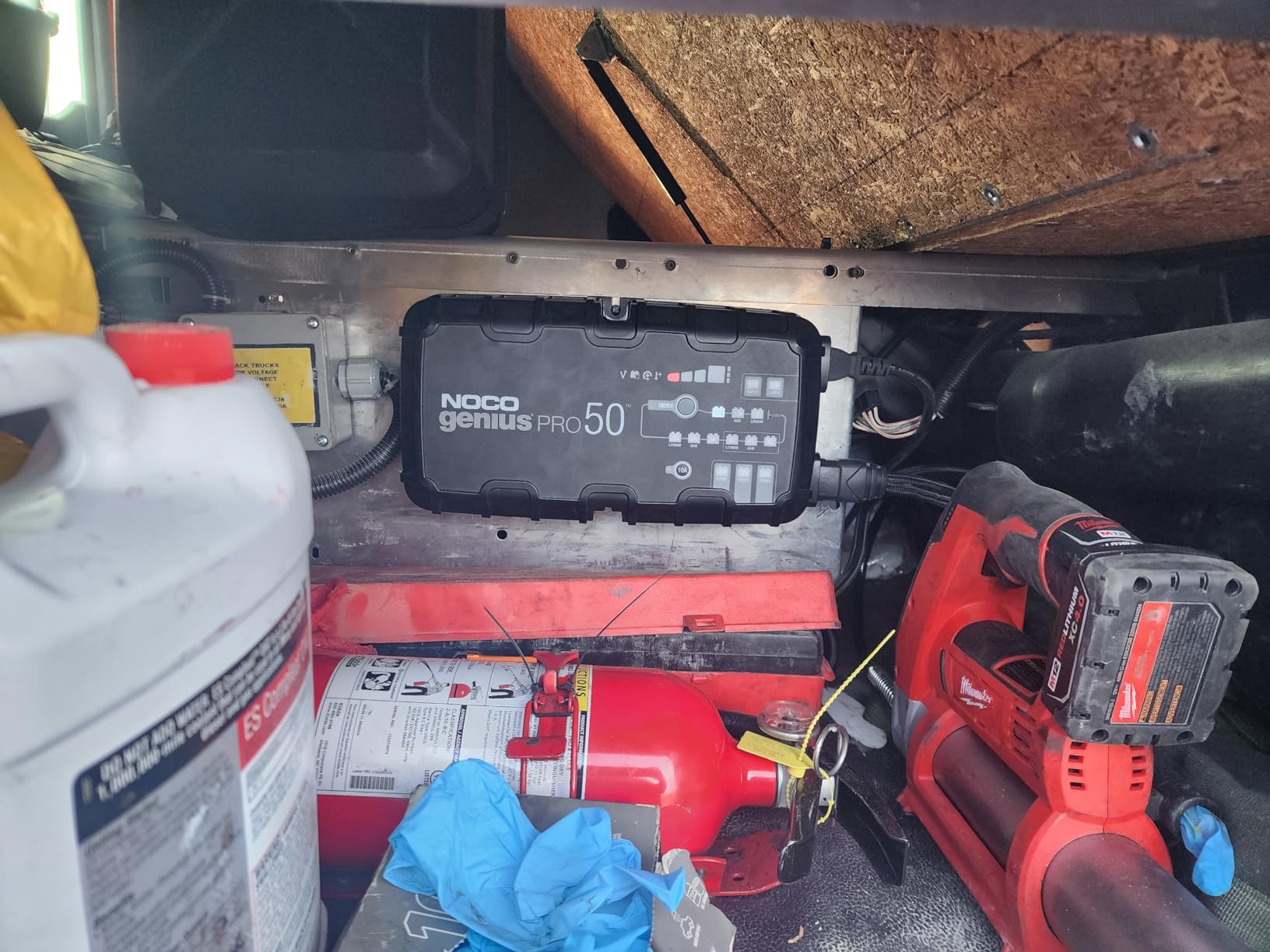

 NOCO GENIUSPRO50 50A Charger |
|
Check Latest Price |
 Associated Equipment 6002B 400A |
|
Check Latest Price |
Why 24V Truck Batteries Need Their Own Charging Numbers
Yes, you need a charger built for a 24V system, and the reason is arithmetic rather than marketing. A truck 24V bank is almost always two 12V batteries in series, so the charger has to push roughly double the voltage of a car charger to reach the same per-cell state of charge. Connect a 12V charger to a 24V bank and its output lands below the combined resting voltage of the pair, so nothing useful happens and the bank slowly sulfates until the next cold morning.
The targets are specific. For a flooded lead-acid truck bank, absorption sits around 28.8V and float around 27.2V. AGM wants slightly lower, closer to 28.4V absorption and 27.0V float. LiFePO4 runs 29.2V to 29.4V absorption with no float stage at all, because a lithium pack should sit at rest rather than being held on a float voltage forever. Temperature compensation is not optional in northern climates, since a lead-acid bank wants a higher target when the cells are cold and a lower one when they are hot.
Series charging has a failure mode that catches people. When two 12V batteries in series have drifted apart in condition, charging the pair as one 24V unit pushes more voltage into the weaker battery and pulls less from the stronger one. Over months the weak battery boils dry. If your pair is mismatched in age, charging each battery separately on a 12V profile until they match is the correct move, and several of the dual-voltage chargers below can do exactly that.
One more warning for lithium owners. A LiFePO4 pack with a battery management system that has gone into protection may not respond to a standard lead-acid absorption profile at all. Look for a charger that names LiFePO4 as a dedicated mode with a wake-up current, and check the documentation, because one of the chargers here states plainly that it should only be used with a BMS in place.

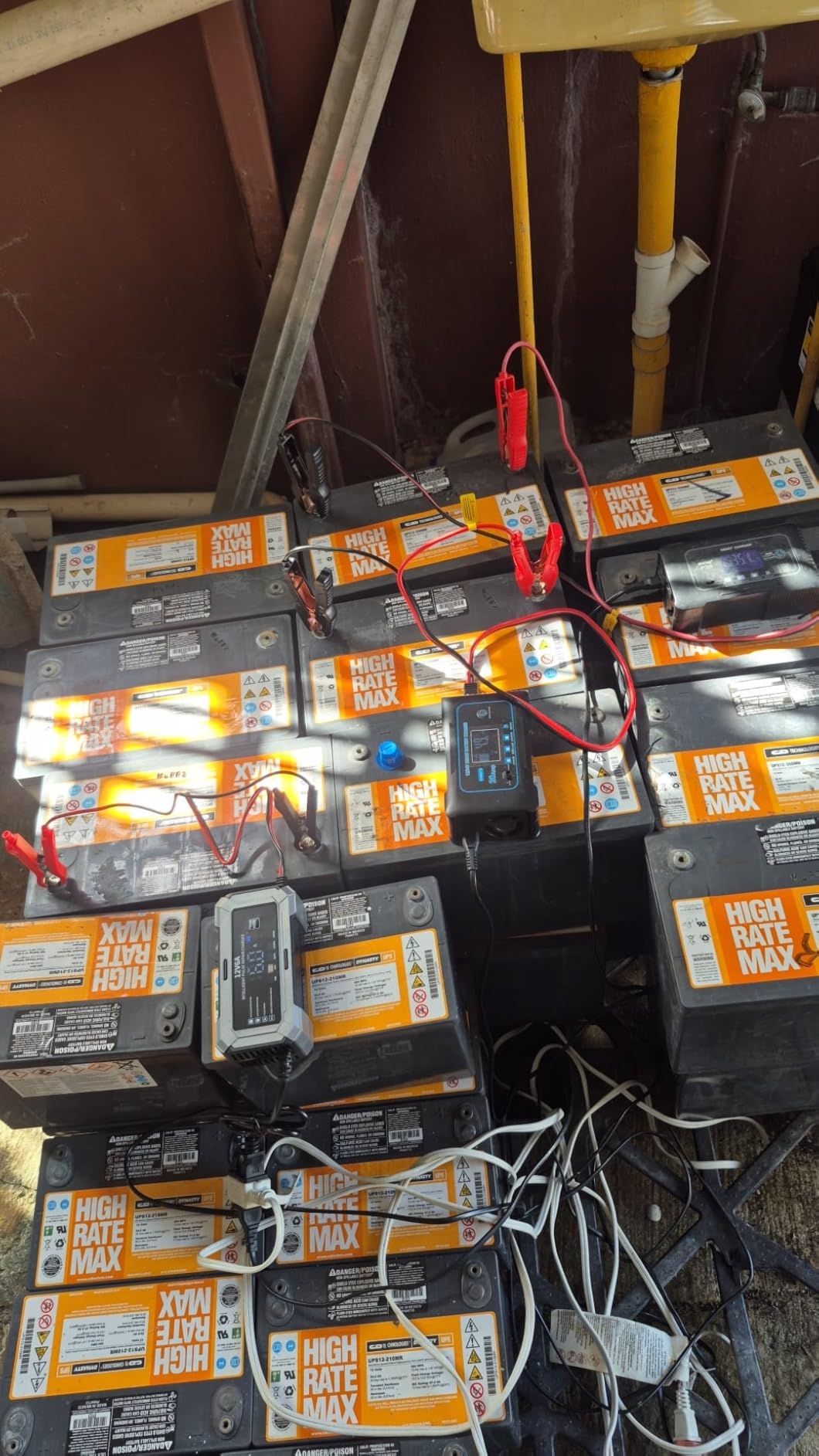

1. Haisito 20-Amp Smart Charger – Best Overall for 24V Truck Work
Haisito 20-Amp Smart Battery Charger (Lithium LiFePO4 & Lead-Acid), 12V/24V Rapid Automotive Car Charger with Temperature Compensation – Trickle Maintainer for Boat, Truck, RV, Lawn Mower, Marine
20A at 12V and 10A at 24V
LCD shows current, voltage, temperature
Auto 12V/24V detection
Pros
- 20A output charges a truck bank far faster than 8A or 10A units
- Separate LiFePO4 and lead-acid algorithms lock the right voltage
- Large LCD reports live current and temperature
- Automatic detection removes manual 12V or 24V selection
Cons
- Cannot revive a completely flat 0V battery
- A deeply discharged 24V pack can be read as 12V and needs the forced-charge override
This is the charger we ended up keeping on the bench. Output is 20A at 12V and 10A at 24V, and the 24V figure is the one that matters for a truck bank, since a healthy 200Ah two-battery bank accepts 10A without any drama. The charging time on a partly discharged pair dropped noticeably against the 8A and 10A maintainers we had been using.
What separates it from the pack is the chemistry handling. It runs three independent algorithms for lithium, LiFePO4 and lead-acid rather than one compromise profile, and the LiFePO4 mode locks the voltage to protect the battery management system. The LCD shows charging current, voltage, temperature and battery percentage at the same time, which removed a lot of guesswork when watching a bank recover.
The automatic 12V/24V detection is accurate most of the time, and the pulse repair mode did measurable good on a stratified pair that had been sitting on a disconnected camper for months. Temperature compensation is built in, so cold-morning charging in our test location behaved sensibly without manual adjustment.
Two limitations are worth knowing before you buy. It cannot activate a completely dead 0V battery, and a badly discharged 24V pack can be misread as 12V on connection. The forced charging mode handles that second case, but you have to know it exists.
When this charger fits a truck
It suits owners who park one truck and want the charger to handle whatever is under the hood or in the bed, including an auxiliary LiFePO4 pack for a work truck or a boat trailer. At 20A it is fast enough for a 200Ah truck bank without being intimidating on a smaller maintenance battery.
It also suits mixed fleets where you cannot predict what chemistry shows up on a given Monday. The auto detection and the three separate charge modes remove the guesswork that causes a lithium pack to be put on a lead-acid profile.
When it is the wrong choice
Skip it if your battery sits at zero volts or close to it, because no amount of forcing will recover a cell that has gone fully flat. It is also not a shop charger and will not crank a diesel, so it pairs with a separate starting solution rather than replacing one.
For a technician who needs a ripple-free supply for module programming, the NOCO later in this list is the right instrument. This one charges batteries, and it charges them well.

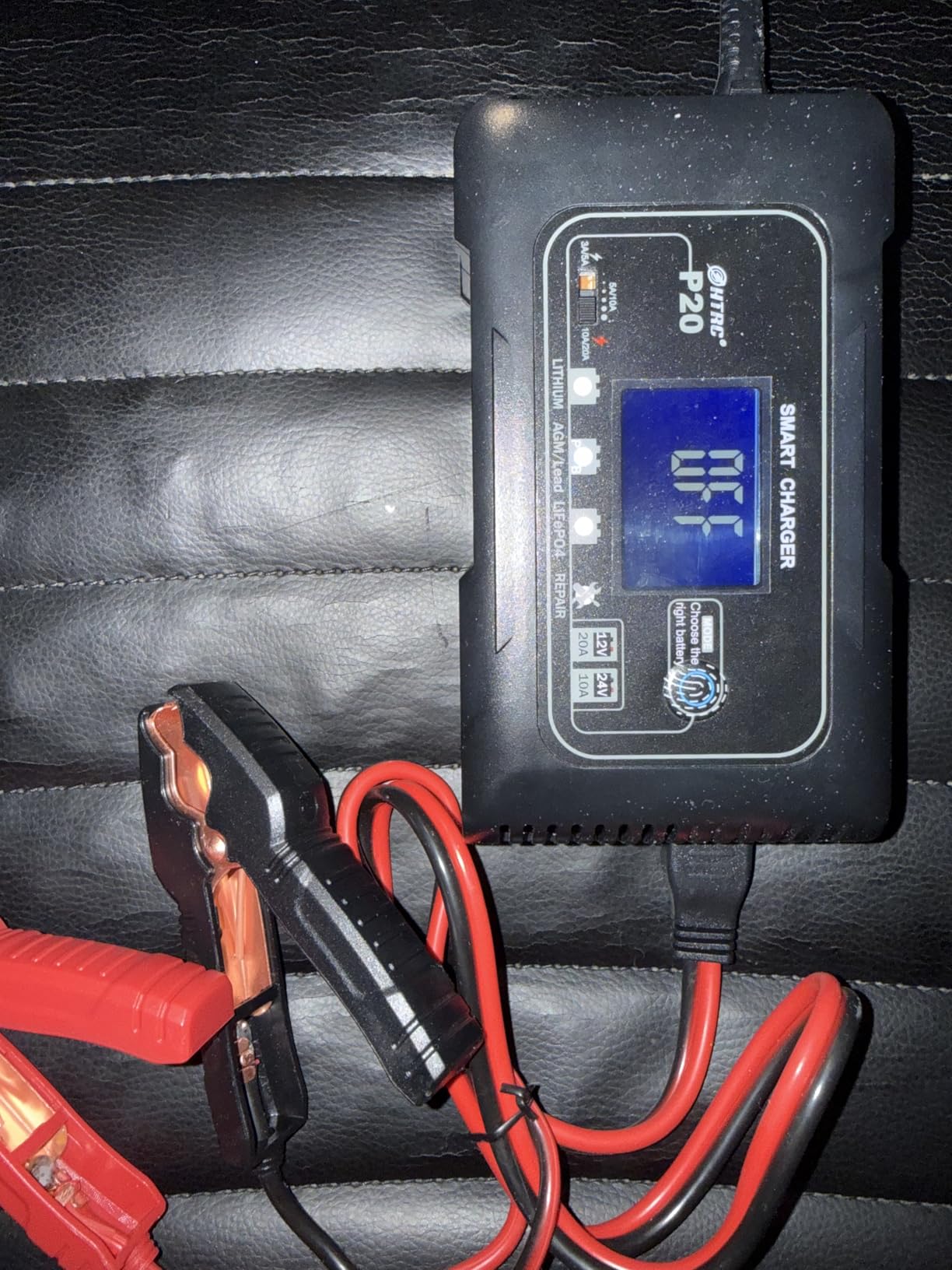

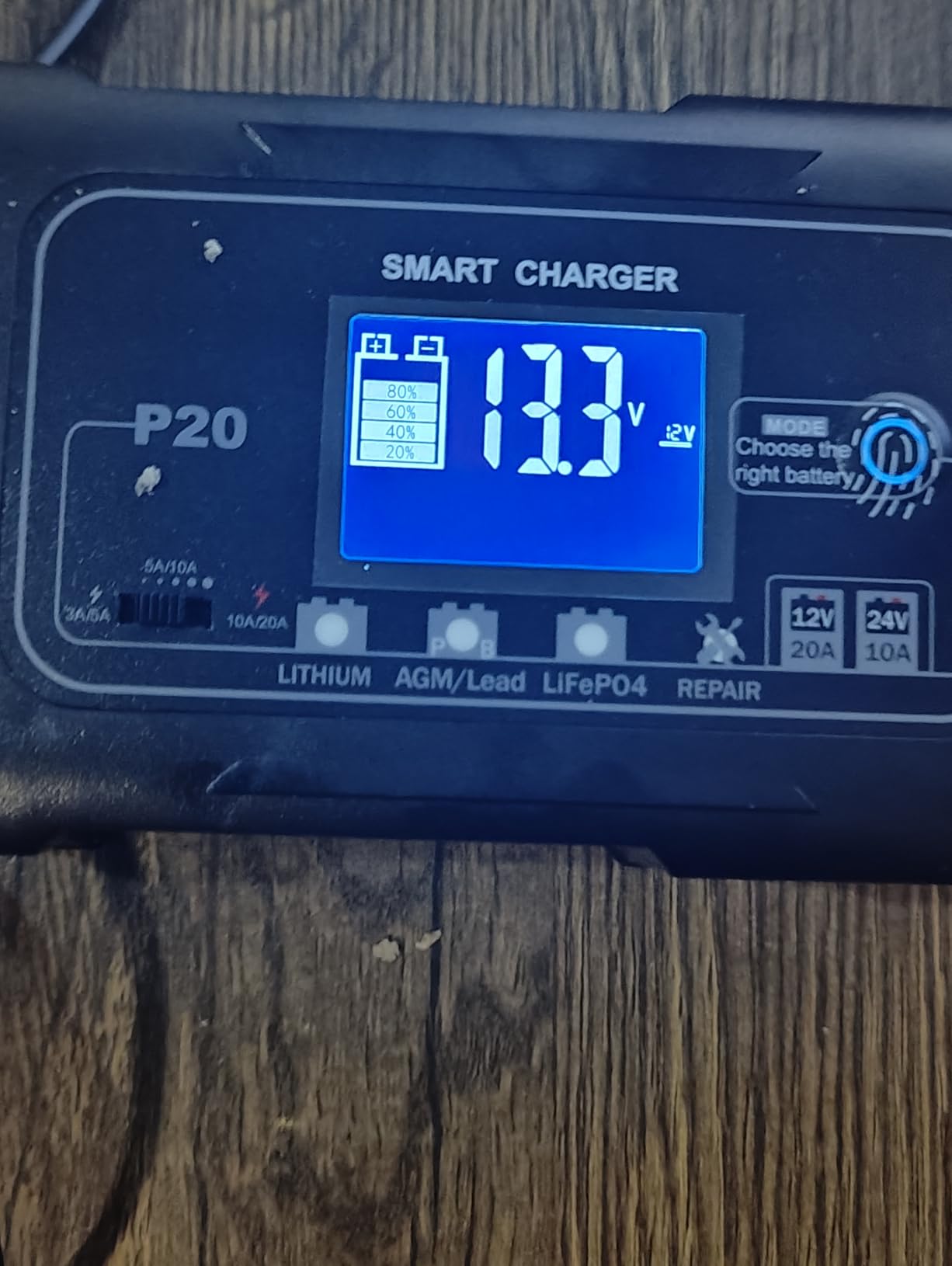

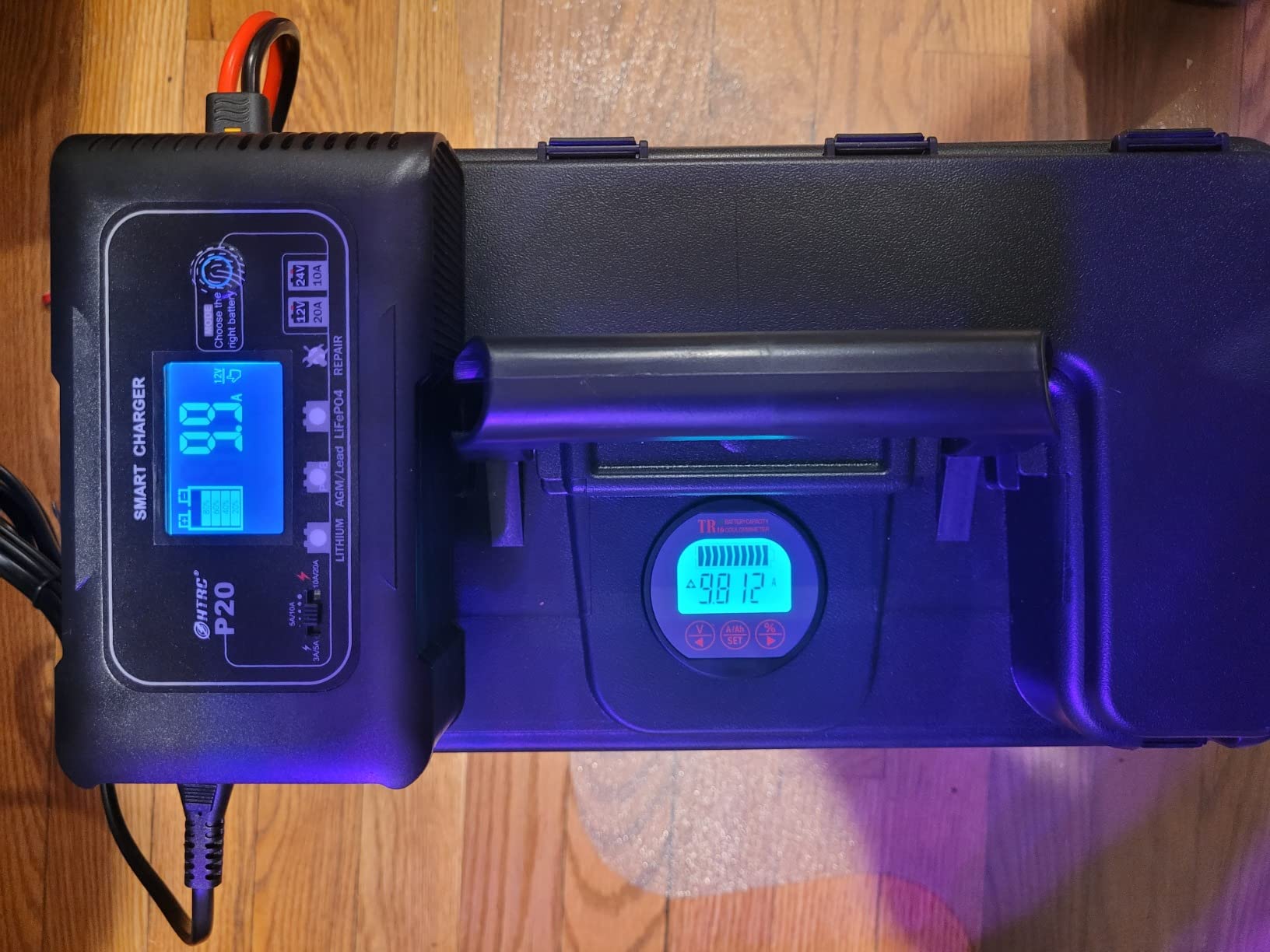

2. HTRC 20-Amp Smart Charger – Best Value for Multi-Chemistry Fleets
20-Amp Smart Battery Charger,Lithium,LiFePO4,Lead-Acid(AGM/Gel/SLA..) Car Battery Charger,Trickle Charger, Maintainer/deep Cycle Charger,12V/20A and 24V/10A,for Boat,Motorcycle,Lawn Mower,Golf cart..
12V 20A and 24V 10A output
Seven-stage program with pulse repair
Starts charging from 1V
Pros
- Automatically recognises 12V and 24V packs with no manual selection
- Three selectable current levels cover a snowmobile AGM through to a truck bank
- Pulse repair has revived batteries other owners wrote off
- Compact at 1.2 lb with a 13 ft cable
- True LiFePO4 charge voltage and wake-up current support
Cons
- Minimum output near 2A rules out true trickle for small SLA and UPS batteries
- Cooling fan is audible in a quiet garage
- Some reports of display failures and a single early failure
- Mains plug supplied does not suit every region
The HTRC is the one we would hand to a mechanic running mixed vehicles every day. It recognises 12V and 24V packs on connection, and the three current levels mean one unit covers a small motorcycle AGM in the morning and a truck bank in the afternoon without a second charger on the shelf.
Maximum output matches the Haisito at 20A for 12V and 10A for 24V, and the seven-stage program includes a genuine pulse repair function rather than a label. Owners in repair shops report using it on LiFePO4 solar banks and reviving deep-cycle L-16 batteries that had been written off. Minimum starting voltage is 1V, which is lower than any other charger here reaches.
Maximum charge voltages are specified per chemistry, including 29.4V for lead-acid and 29.2V for LiFePO4 at the 24V setting, so the output is in the right band for a truck bank rather than merely close. Cooling runs on a fan, and the protection suite covers over-current, over-voltage, short-circuit and reverse polarity.
The complaint that came up most often in owner feedback was the absence of a true low-current trickle. The lowest output is around 2A, and one owner reported boiling acid out of a 100Ah sealed lead-acid battery because of it. If you maintain sealed SLA or backup batteries alongside your truck, that matters.
Where the HTRC earns its place
It fits shops and mobile service technicians who cycle between vehicles all week. At 1.2 lb it moves between the bench and the service van without being a nuisance, and the 13 ft cable reaches across most engine bays without an extension.
It also fits owners running a mixed battery estate, since it accepts lithium, LiFePO4, AGM, gel, SLA, flooded and VRLA packs and picks the voltage automatically on connection.
Where it falls short
The 2A floor is the main problem for anyone maintaining small sealed batteries on a float, and the fan noise shows up if you plan to run a charge overnight in a quiet building. It is also not a starter, so it will not help you get a dead truck running.
If deep discharge recovery is your main concern, look at the NOCO GENIUSPRO50, which charges all the way down to zero volts.

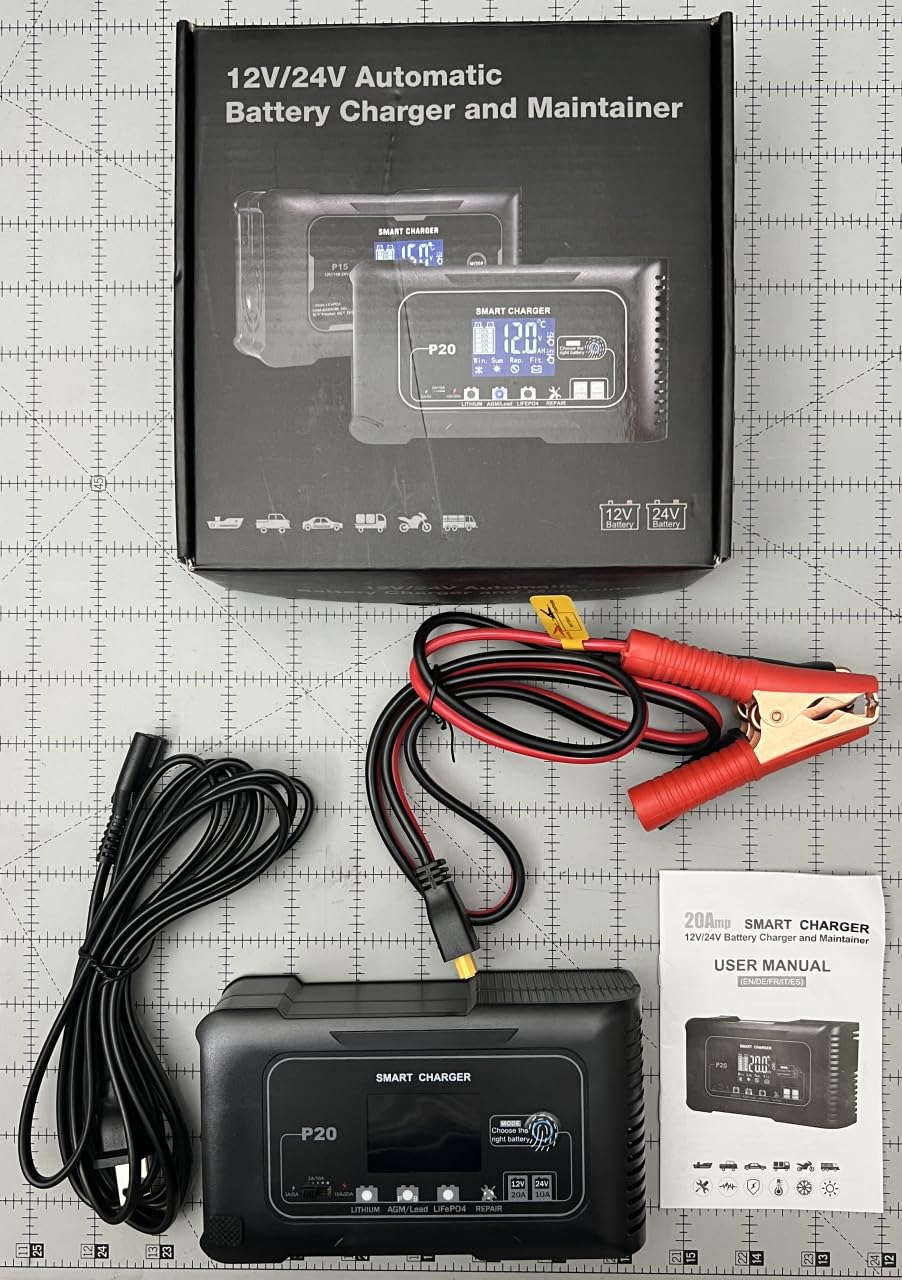

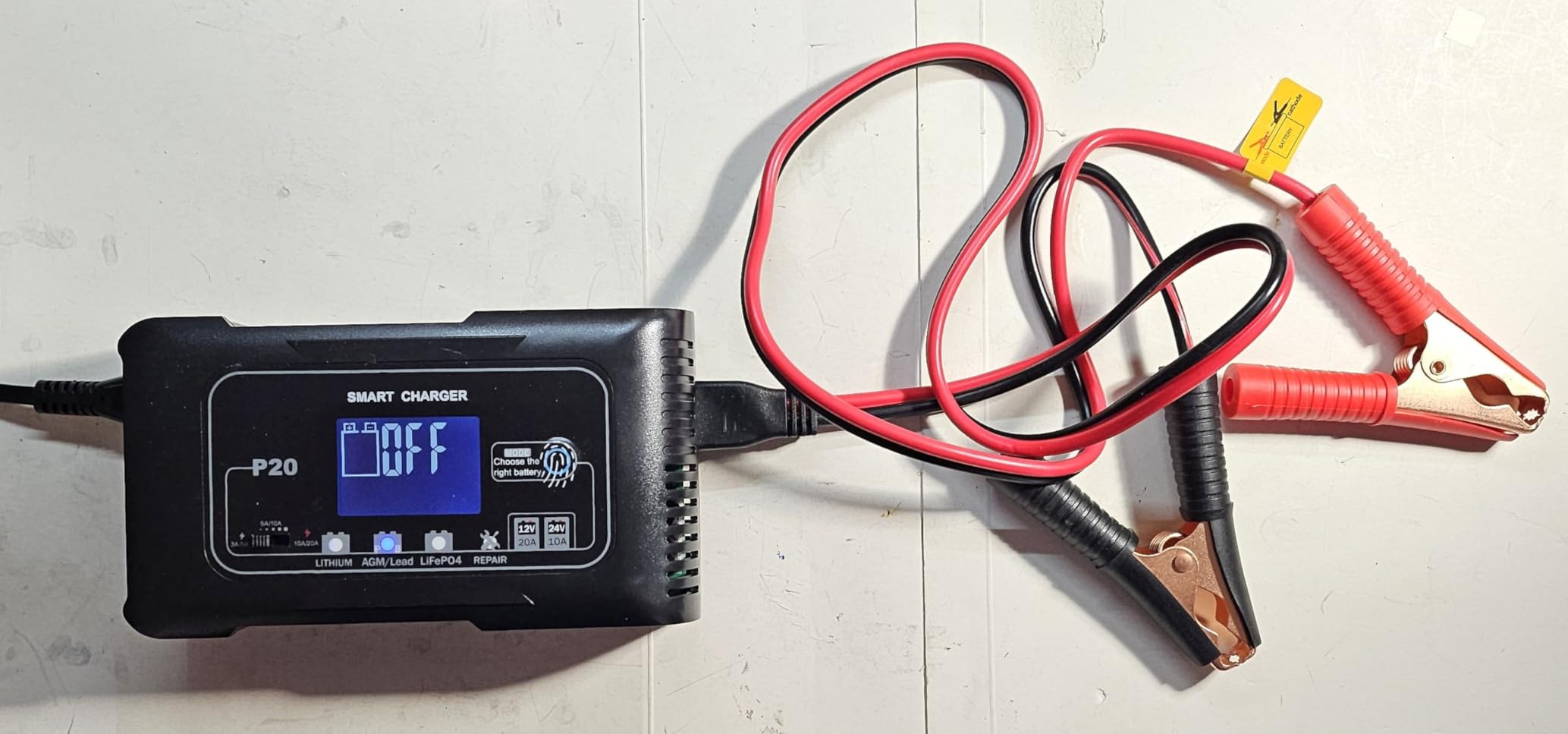

3. HTRC 20-Amp 12V/24V Maintainer – Best Nine-Stage Program on a Budget
Car Battery Charger 0-20A, 12V/24V Battery Maintainer Trickle Charger
Nine-stage charging with desulfation
12V 20A and 24V 10A output
Three current levels per voltage
Pros
- Nine-stage program with a dedicated repair mode for old or weak batteries
- Automatic 12V and 24V recognition with three current levels
- Broad protection suite covering reverse polarity and over-temperature
- Stops automatically once the battery reaches full charge
Cons
- Cannot activate a fully depleted battery
- Listed as supporting lithium and LiFePO4 packs only
- Mode lock engages ten seconds after charging starts
This second HTRC is the simpler of the two, and it carries CE, FCC and UL marking alongside a two-year warranty. Output is 20A at 12V and 10A at 24V, and the nine-stage program covers detection, desulfation and trickle in a single pass.
Three current levels for 12V at 5A, 10A and 20A and three for 24V at 3A, 5A and 10A are selected from one button, which makes it easy to drop down to 3A when you are topping off a smaller bank overnight. Maximum charge voltages again sit in the correct band at 29.4V for lead-acid and 29.2V for LiFePO4 at the 24V setting.
It carries CE, FCC and UL marking plus a stated two-year warranty, which is more than most of the unbranded chargers in this class can point to. Automatic seasonal mode switching handles summer and winter without you touching it.
Two things to know. The compatibility listing is narrower than the HTRC 20-Amp and names lithium and LiFePO4 packs rather than the full AGM, gel, SLA and flooded range, so read it before connecting a conventional flooded truck battery. And the control lock engages ten seconds after charging begins, which removes some flexibility mid-session.
Good fit for maintenance duty
It fits a truck that sits for weeks between hauls and needs a low-current top-up rather than a rescue charge. The 3A and 5A settings at 24V are appropriate for that kind of storage maintenance and are gentler than running 10A into a full bank.
It also fits a shared workshop bench where several people need to plug in a battery without reading a manual, thanks to the one-button current selection.
Not the right pick when
It will not bring back a battery that is completely dead, and the ten-second mode lock is mildly annoying if you want to switch current mid-session. For a wider chemistry range, the HTRC 20-Amp above covers more battery types explicitly.
If you need warranty cover beyond two years, the YHCHKJ in this list states five years.

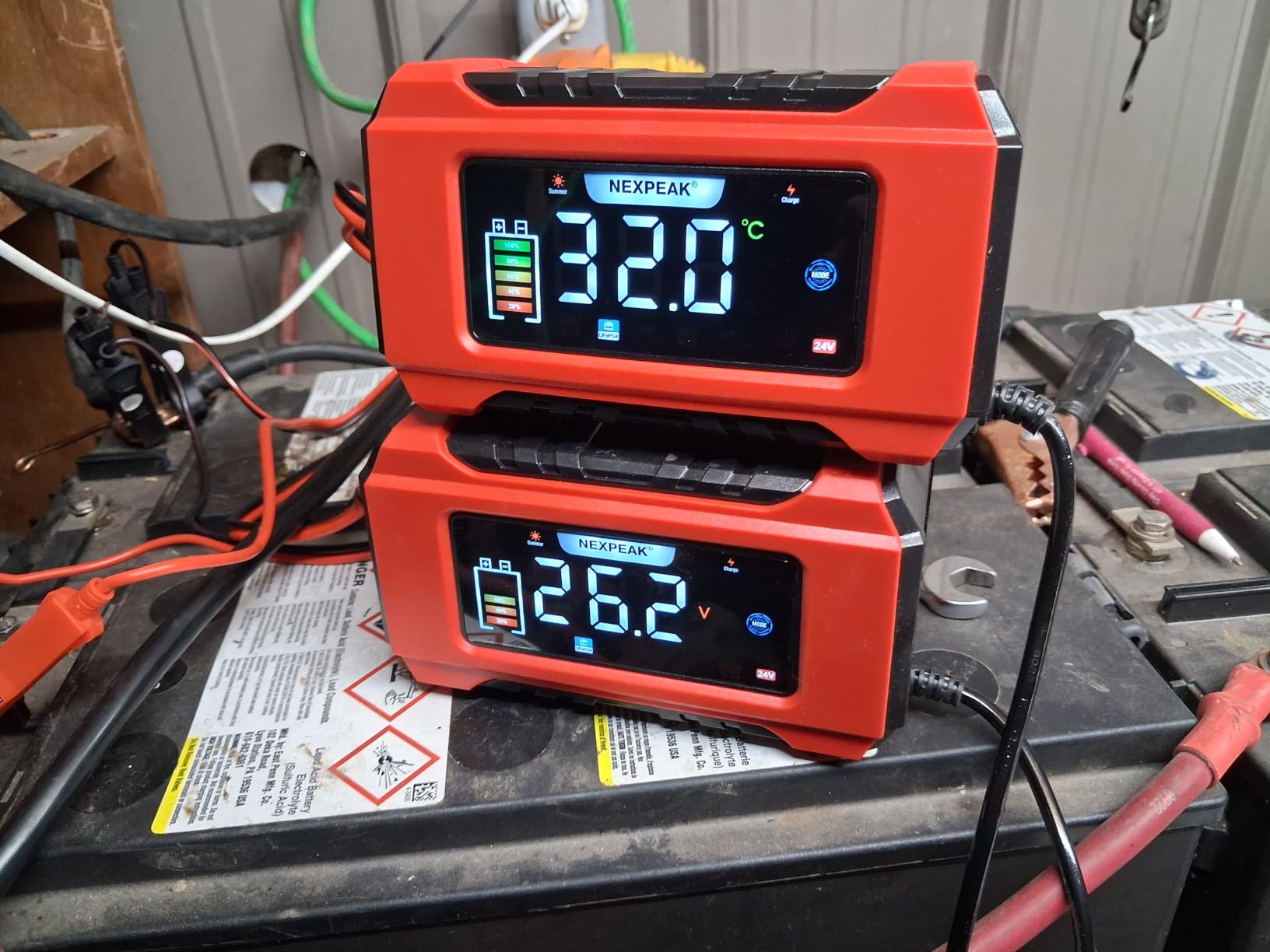

4. NEXPEAK 15-Amp 12V/24V Charger – Top Rated for Outdoor and Cold Work
NEXPEAK 15-Amp Battery Charger, 12V 24V LiFePO4 Lead Acid Portable Car Battery Charger 9-Stage Trickle Charger Smart Battery Maintainer w/Temp Compensation for Car Truck Lawn Mower Boat Marine NC215
12V 15A and 24V 8A output
Colour LED screen
Automatic trickle and float mode
Pros
- Joint highest rating in the line-up at 4.6 stars
- Extra-large colour screen stays readable in direct sunlight
- Automatic trickle and float mode keeps stored batteries topped up for months
- Pulse repair has revived sulfated batteries
- Buyers report keeping more than one in service for years
Cons
- Cannot activate or charge a totally dead 0V battery
- Supplied mains plug and cable do not suit every region
- Standby draw is relatively high alongside an inverter
The NEXPEAK ties for the highest average rating of the chargers collected here, and the reason is consistency rather than any single headline specification. It carries a two-year warranty, 75 percent of buyers rate it five stars, and buyers report keeping more than one in service for two years of daily use.
Output is 15A at 12V and 8A at 24V, which makes it a maintainer-class machine rather than a rescue charger. For seasonal trucks parked outside and topped up weekly, that is the right amount of current and no more. Temperature compensation and under-charge prevention are both built in, which matters in a cold climate.
The extra-large colour LED screen was the deciding factor for us. It shows voltage, current, temperature and percentage, and it stays readable in direct sunlight where the LCDs on a few chargers here wash out. The 6.7 ft cord measured from clips to plug is long enough to reach around an engine bay without an extension lead.
Automatic trickle and float mode engages after full charge, so a battery that stays connected over months is not overcharged. Pulse repair detected sulfation and acid stratification automatically and worked as advertised on a pack that had been idle.
Where this charger works best
It suits outdoor storage maintenance, marine use and any situation where you need to read the display at a glance rather than squint at a dim LCD. Automatic float means it is safe to leave connected between seasons without thinking about it.
It is a good companion to a truck that already starts reliably and just needs its batteries held up between trips.
Where you will want something else
At 8A on a 24V bank, recovery of a genuinely depleted truck pair will take a long time, and it cannot touch a 0V battery at all. Owners outside North America report plug and cable issues, and the standby draw is higher than you want if it sits alongside an inverter on a lithium setup.
For faster recovery on a big bank, the E-FAST at 15A on 24V is the step up.

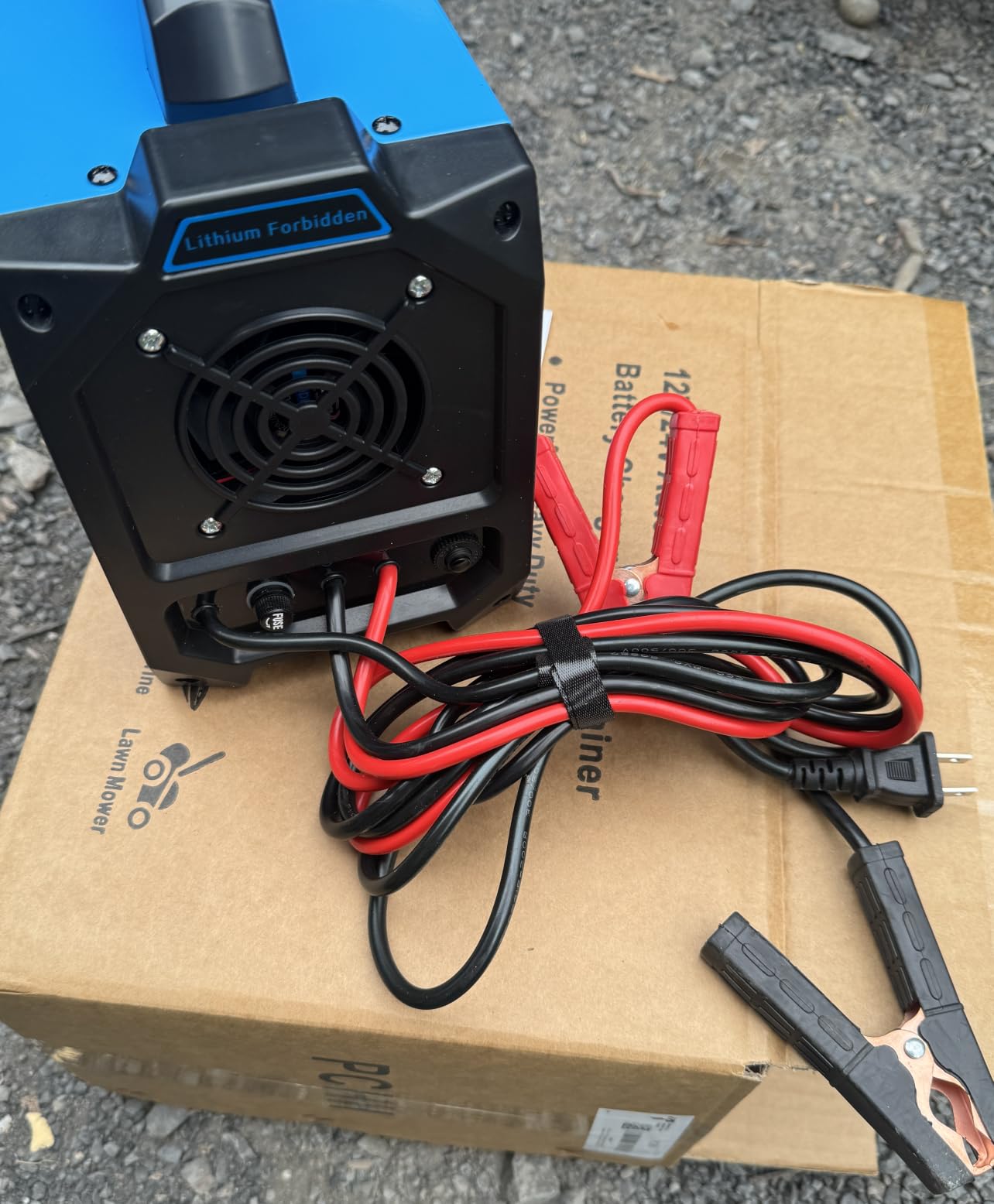

5. PCHH Heavy-Duty 0-15A Charger – Best Metal-Build Shop Charger
PCHH 12V 24V Car Battery Charger Heavy Duty, 0-15A Automatic Battery Maintainer, Smart Trickle Charger with Auto Shutoffs, Repair, Winter Mode, for Automotive Car Truck Motorcycle Lawn Mower Boat AGM
Copper coil and metal chassis at 12.4 lb
0-15A adjustable with auto detection
Three-year warranty
Pros
- Genuine heavy-duty build with metal and copper coil rather than light plastic
- Automatic 12V and 24V detection with a fully hands-off charging cycle
- Repair mode has brought flat batteries back
- Winter mode gives noticeably better cold-weather charging
- Three-year warranty on a metal chassis
Cons
- Bulky at 12.4 lb next to pocket-sized smart chargers
- Repair mode progresses slowly on 8V series packs
- LCD is hard to read in bright sunlight
- Weak wire gauge on the clamps
Most of the smart chargers here live in a plastic shell. The PCHH does not, and you feel the difference the moment you lift it at 12.4 lb with a copper coil and metal chassis. For a shop where chargers take a beating, that construction is the argument for the purchase.
Output is adjustable from 0 to 15A with automatic 12V and 24V detection, and the charging cycle is genuinely hands-off. Owners with 80 percent five-star ratings report the repair mode bringing flat vehicle batteries back to the point where they kept the old battery instead of buying a replacement.
Winter mode gives better results in genuinely cold weather, which is the situation most truck owners in cold regions face. Auto shut-off at full charge plus a pulse maintain mode means it is safe to leave connected overnight.
It carries a three-year stated warranty, tied with the NOCO for the longest term here, and it suits electrolysis work such as cast iron rust removal if that is on your list. The repair mode covers batteries above 3V, so it sits in the middle of the recovery range rather than at the extremes.
The trade-off is size and weight. At 12.4 lb and 11.4 inches long it is not a portable unit, and the LCD washing out in direct sunlight is a real annoyance in a yard. Weak wire gauge on the clamps is worth noting if you are planning long cable runs.
Built for the shop, not the glovebox
It fits independent shops and fleet maintenance bays where the charger stays put and gets used several times a day. Metal construction and a three-year warranty are the right call when a charger is a fixed tool rather than a stowed accessory.
It also fits anyone restoring an older vehicle who wants a repair mode with some authority behind it, given the repeated reports of revived batteries.
Where it is too much
It is too heavy and bulky for a service truck that stores gear in the bed, and it is not a booster, so it cannot start a dead engine. If you need portability, a 1.2 lb smart charger is a far better fit.
It is also not the right tool for golf-cart style 8V series packs in repair mode, where progress is reported as slow.

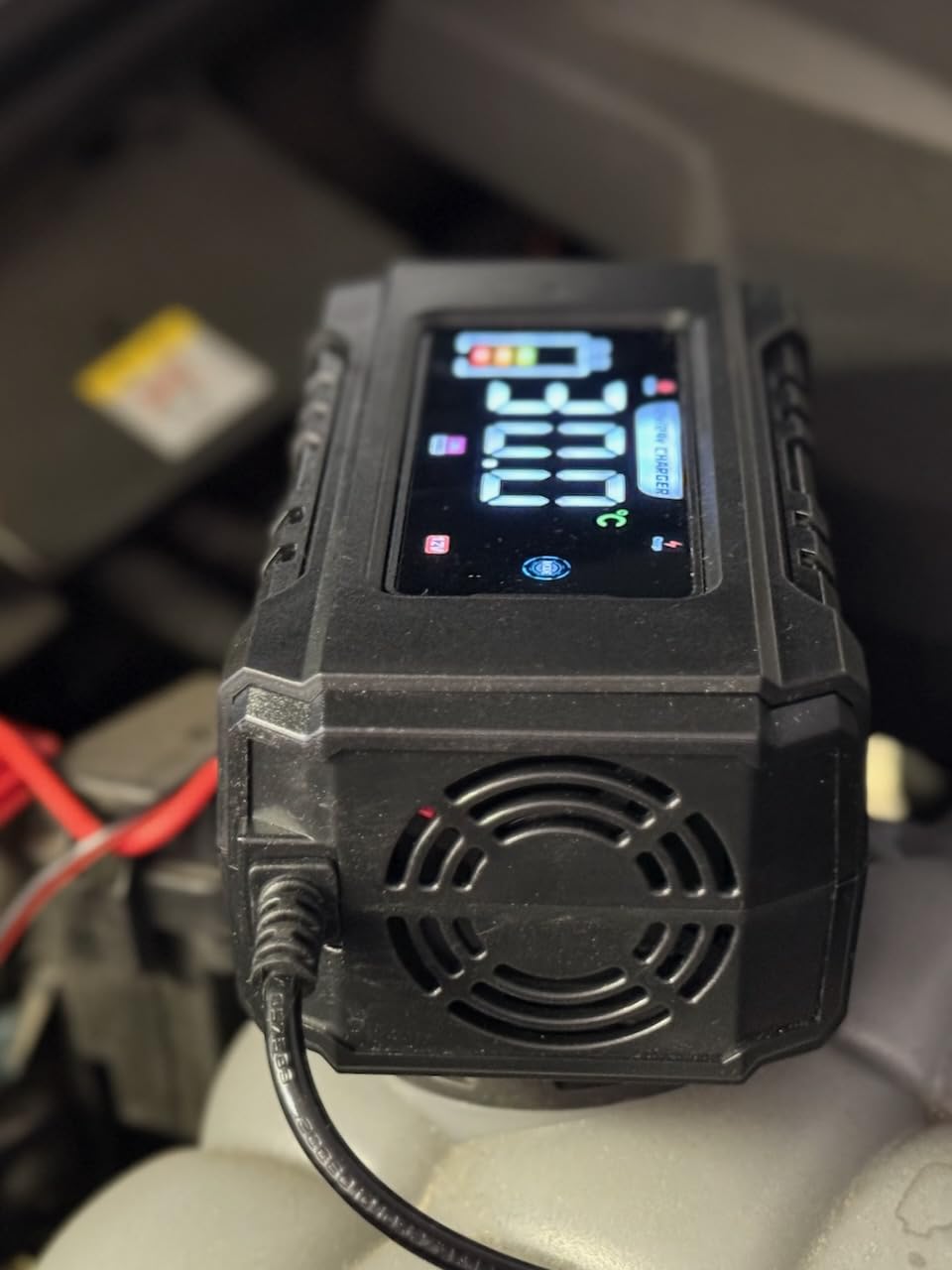

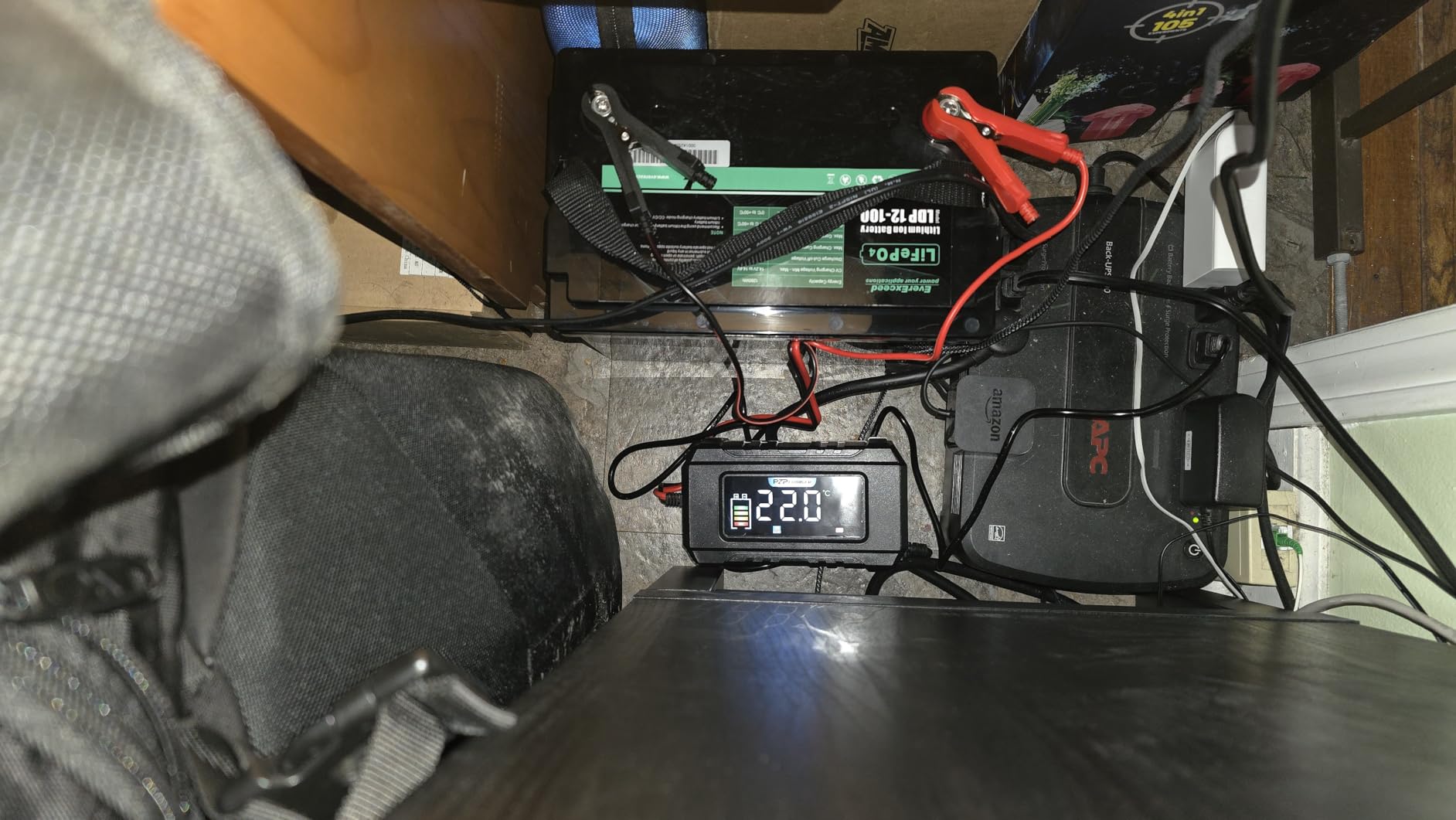

6. PZ.P 15-Amp 9-Stage Charger – Best Verified Output for LiFePO4 Packs
PZ.P 15-Amp 12V/24V Smart Battery Charger, Maintainer & Trickle Charger for LiFePO4, Lead Acid Batteries – Fully Automatic 9-Stage Charging w/Temp Compensation for Motorcycle Car Truck Lawnmower Boat
12V 15A and 24V 8A output
Five modes including 1.75A trickle
18-month warranty
Pros
- Charges a 25.6V 100Ah LiFePO4 pack in under twelve hours
- Five modes including a 1.75A trickle for smaller batteries
- Large high-contrast numbers stay legible in sunlight
- Verified output of 15A at roughly 180W on a lithium pack
Cons
- Must be switched to LiFePO4 mode on first use or it starts in recovery mode
- Thin clip contacts and light wire gauge
- Not weatherproof and not recommended for outdoor use
- Full indication reported as unreliable on badly degraded batteries
The instrumented testing behind this one is the reason it earned its place. Owners with a meter confirmed 15A of real output at about 180W and correct 14.6V LiFePO4 charging, and one charged a 25.6V 100Ah lithium pack in under twelve hours from a small enclosure. That is the number that matters for a lithium house bank in a coach or service truck.
Five selectable modes give it flexible chemistry handling: standard, LiFePO4 and AGM, motorcycle, a low-current ITL trickle at 1.75A, and repair. A genuine 1.75A setting is something the other compact chargers in this list do not offer, and it is the right current for a small battery that a 3A minimum would damage.
Operating range is 14F to 82F with temperature compensation and under-charge prevention, and the colour screen shows voltage, current, temperature, percentage and the active season mode. One-click pulse repair handles sulfation and acid stratification. The warranty is 18 months with CE, FCC and UL marking.
Read the manual before first use. It must be switched to LiFePO4 mode, otherwise it starts in a recovery mode that is not suitable for lithium. The documentation also states it should not be used without a battery management system in place, which is sensible advice for anyone running lithium.
One serious owner report deserves repeating. On a badly degraded battery the on-screen full indication was unreliable, with a battery boiled dry while the charger showed no fault. Confirm charge with a meter on any battery you have rescued.
Best for lithium house banks and mixed fleets
It fits owners running a 24V LiFePO4 pack in a truck camper or a service vehicle where you need verified output and a proper low-current mode for the smaller starter battery alongside it. The measured 180W delivery is backed by instrument testing rather than a specification sheet, which is rarer than it should be in this category.
It also suits anyone who needs a motorcycle setting and a 1.75A trickle from the same unit, which is a combination none of the other compact chargers here offer.
Where it falls short
It is not weatherproof and should not live in a truck bed or an open trailer. The thin alligator clip contacts and light wire gauge mean it is not the tool for a rough shop floor with cables being dragged around.
If you are starting from a battery at zero volts, it will not recover it. The NOCO in this list charges down to 0V.

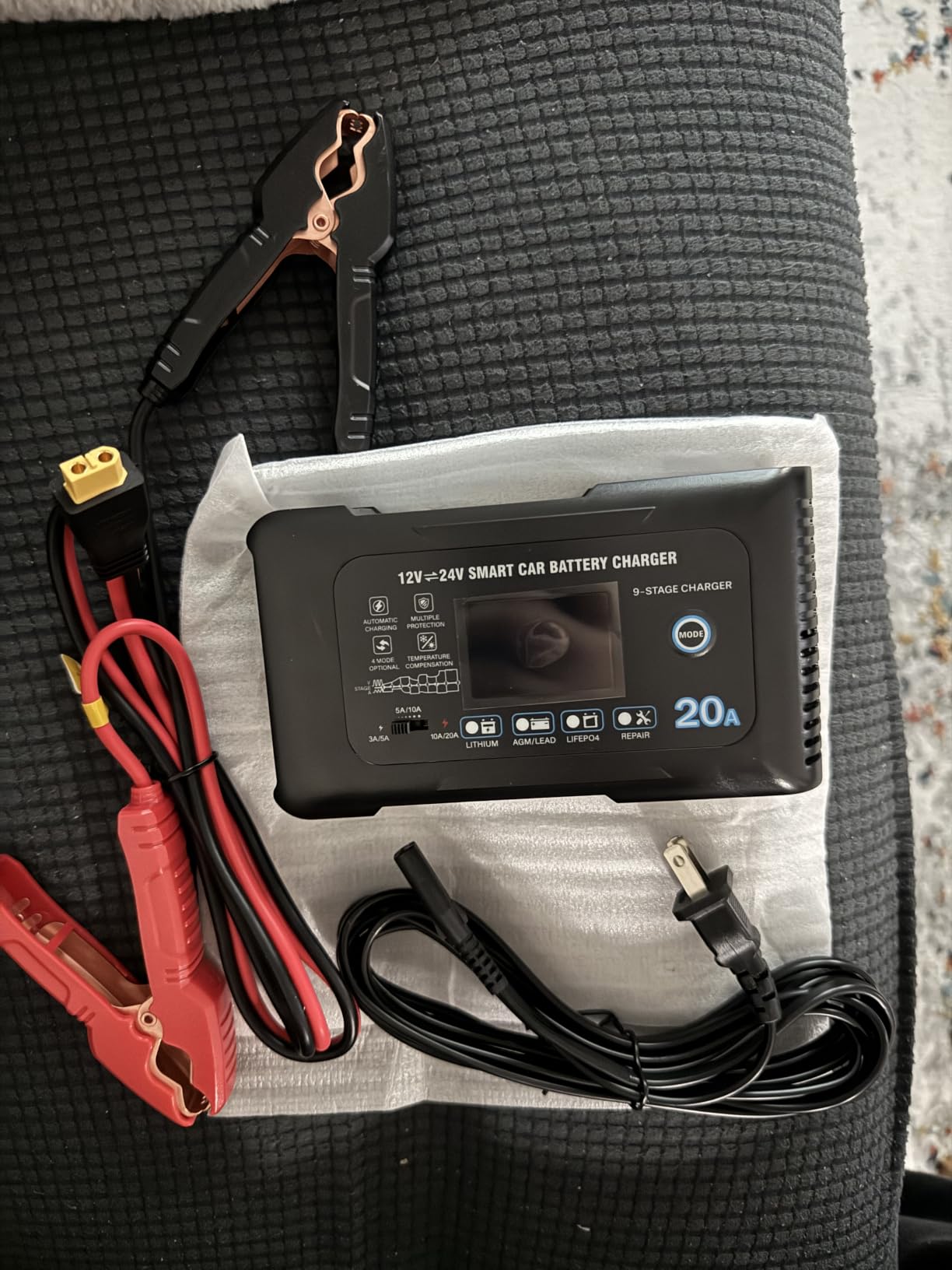

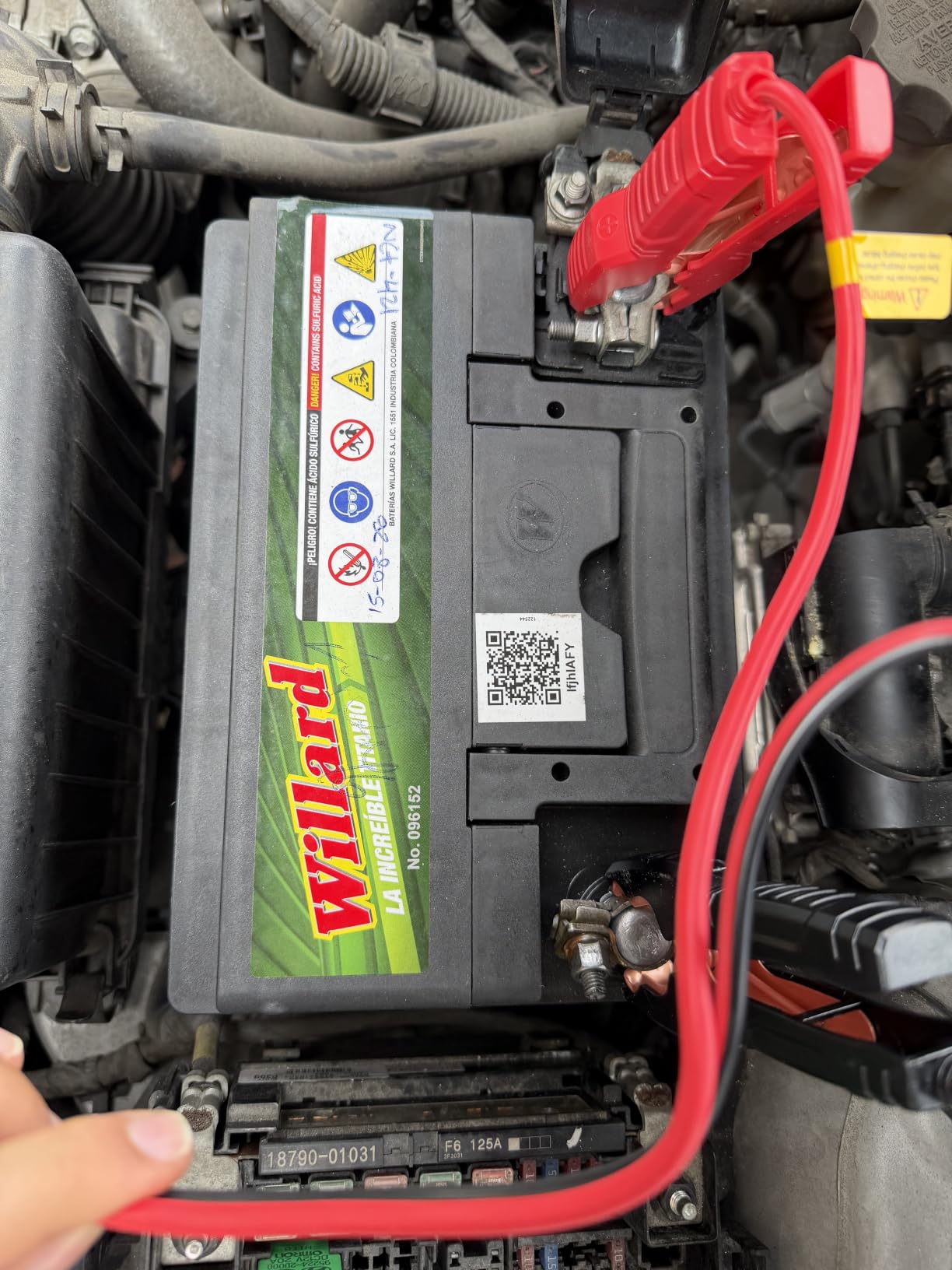

7. YHCHKJ 20-Amp Smart Charger – Best Warranty in the Group
YHCHKJ 20A Car Battery Charger, 12/24V Smart Trickle Charger & Maintainer
20A at 12V and 10A at 24V
Three current levels per voltage
Five-year warranty and UL listed
Pros
- 20A at 12V in a compact 1.2 lb body
- Three current levels per voltage for fine-tuning
- One-touch start reduces setup to plug in and go
- Summer and winter compensation protects batteries in extreme climates
- Pulse repair has restored lead-acid capacity
Cons
- Not a jump starter and cannot start a dead battery
- Minimum starting voltage is 2V so fully depleted packs are out of reach
- Over-discharged 24V packs can be misread as 12V and need a forced-mode override
The headline here is a five-year warranty, which is the longest stated term of any charger covered here, and the first thing we look at when a charger will live in a truck for years. It is UL listed, and at 1.2 lb it is one of the more compact 20A units available.
Output is 20A at 12V and 10A at 24V, with three current levels at each voltage so you can trim down for a smaller bank. One-button start handles voltage and chemistry detection automatically, which means less time reading labels in a dark yard than most competing units require.
Summer and winter mode switching with temperature compensation is automatic, and the LCD shows voltage, current, internal temperature, percentage and the active mode. Pulse repair and desulfation have restored lead-acid capacity in practice according to owner reports, and 80 percent of buyers rate it five stars.
A forced mode is available by hand for misdetected over-discharged 24V packs, which addresses the same 24V misread problem that the Haisito handles. Automatic stop at full charge makes it safe to leave connected overnight on a maintained bank.
The hard limitation is the 2V minimum starting voltage, which puts fully depleted packs out of reach. It is also a charger and not a jump starter, so it cannot start a dead engine. For that job, see the portable jump starter guide linked earlier.
A long-life choice for a work truck
It fits owners who want a charger that stays with the vehicle for the long haul. A five-year warranty on a 1.2 lb unit is a reasonable signal about expected service life, and the 20A output is quick enough for a 200Ah truck bank.
It also fits cold-region operators, where automatic seasonal mode switching removes a winter adjustment step that manual chargers require.
Where it will not do the job
It will not recover a battery sitting at or near zero volts, and it will not start an engine. The manual forced-mode override is also something you need to know about before you need it, since a misread 24V pack otherwise looks like nothing is happening.
For a battery that has been completely drained, the NOCO GENIUSPRO50 is built for that specific case.

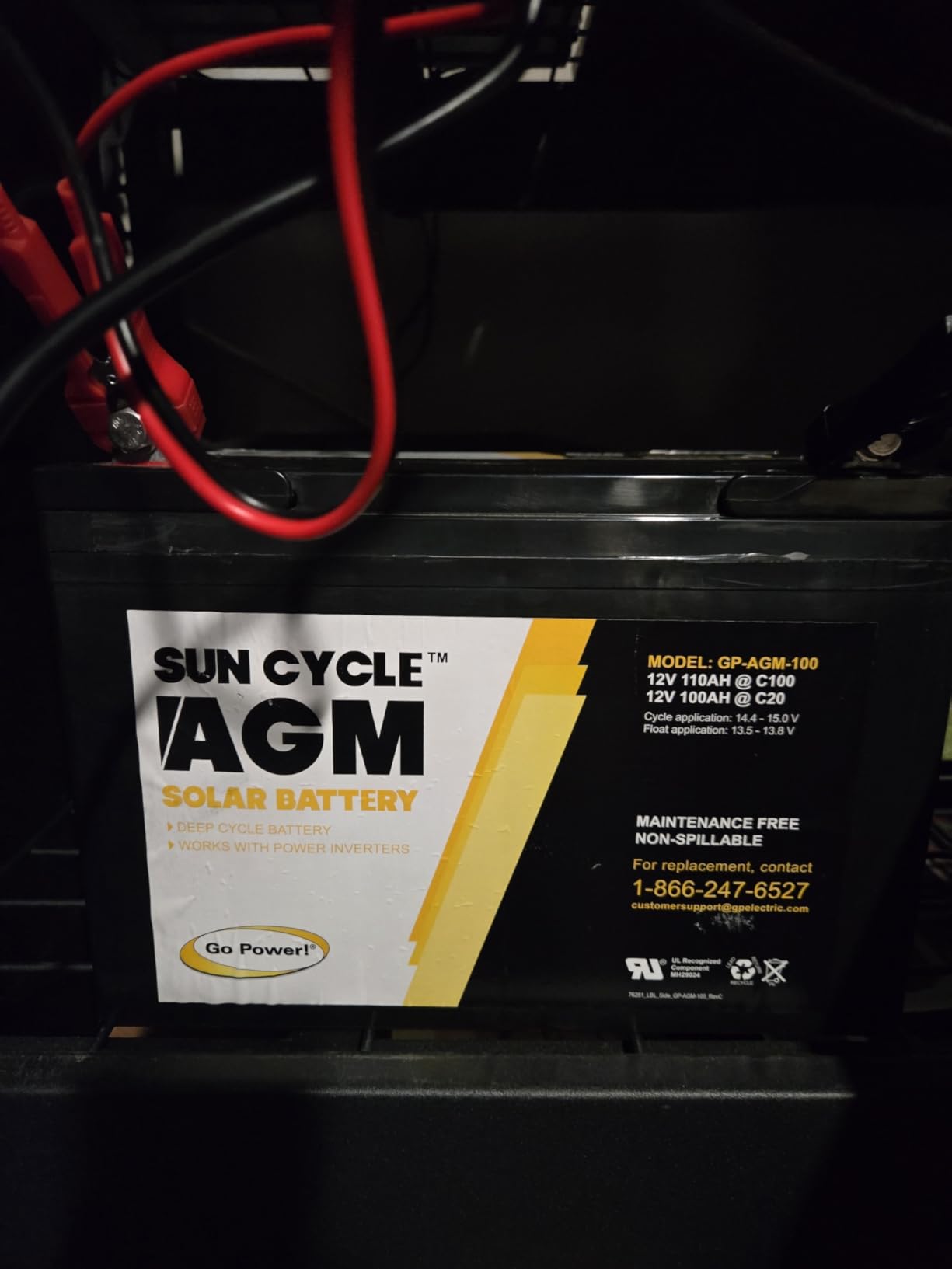

8. E-FAST 25-Amp Smart Charger – Best Boost Assist and 15A on a 24V Bank
E-FAST 25A Smart Car Battery Charger, 12V/24V Automatic Automotive Battery Maintainer & Desulfator with 200s Booster Mode – Adjustable Amp Trickle Charger for Lead-Acid, AGM, Gel, LiFePO4
25A at 12V and 15A at 24V
Five current levels including 2A
200-second booster mode
Pros
- 25A at 12V and 15A into a 24V bank in under 4 lb
- Five distinct current settings including a 2A option for small batteries
- Only portable charger here with a timed 200-second booster mode
- Aluminium alloy housing dissipates heat better than plastic competitors
- Automatic seasonal switching at defined 10C and 28C thresholds
Cons
- Booster function works on 12V batteries only
- One-year warranty is shorter than the three and five-year terms elsewhere
- 3.7 lb is heavier than sub-2 lb smart chargers
- Cannot recover a completely dead battery
The E-FAST delivers 25A at 12V and 15A at 24V, and at under 4 lb that 15A figure on a 24V bank is the most continuous current from a portable charger here. On a large truck or RV bank that difference is the whole charge time, and it is the reason this one stands out for heavy work.
Five current selections are genuinely distinct: 2A, 8A, 20A, 25A and an auto mode that reads internal resistance to pick a rate. The 2A setting protects small motorcycle and mower batteries, and a 200-second booster mode delivers a current surge for a jump-start assist.
Thermal management is handled by an aluminium alloy housing with a built-in cooling fan, which dissipates heat far better than the plastic shells competing with it at 25A. Eight-stage charging includes a dedicated 16-hour repair cycle aimed at recovering sulfated batteries. Winter mode triggers below 10C and summer mode above 28C on defined thresholds.
You need to know one thing before buying. The booster mode is 12V only, so it will not help you start a 24V diesel even though the charger itself handles 24V charging at 15A. The one-year warranty is shorter than the three and five-year terms offered by other chargers here, which is a real consideration for a tool you plan to keep.
At 3.7 lb it is heavier than the sub-2 lb smart chargers, and it will not recover a completely dead battery.
Right for big banks and heavy daily use
It fits operators with large dual-battery banks who want overnight recovery rather than an overnight top-up. Fifteen amps into a 24V pair is a meaningful jump over the 8A to 10A class and cuts the hours on a deep discharge.
It also fits mixed fleets where a 2A setting protects the small batteries and a 25A setting handles the big ones, with the auto mode bridging the gap when you are not sure.
Where it disappoints
The 12V-only booster is the main disappointment given the truck focus, and the one-year warranty is thin next to three and five-year terms elsewhere in this list. For 24V cranking assist specifically, you need the wheeled shop charger later in this roundup.
If your primary goal is a 24V maintenance top-up, 15A is more than you need and the battery life of a lithium pack is not improved by the extra current.

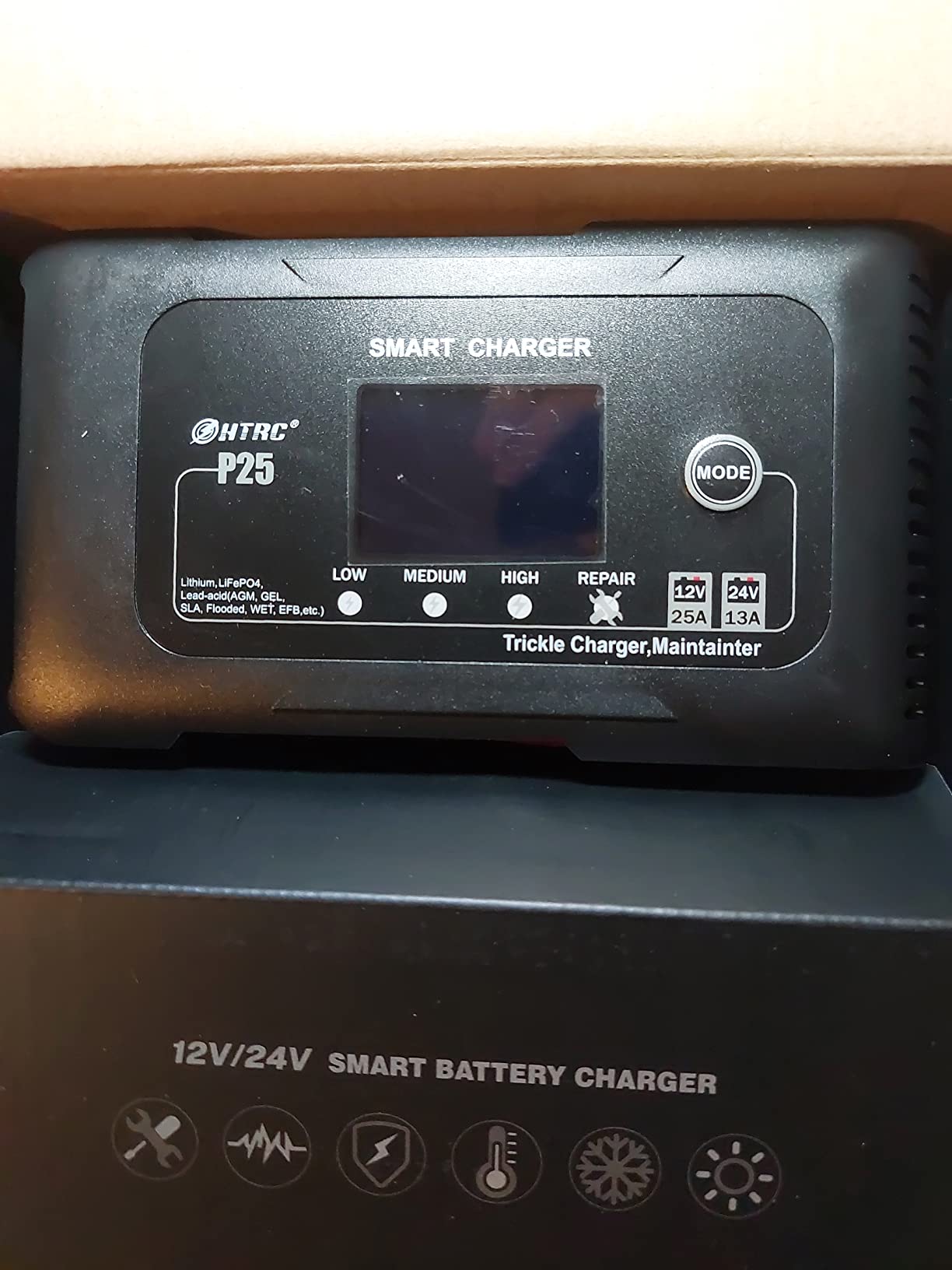

9. RCGCBC 25-Amp 9-Stage Charger – Best Compact 25A Unit
Battery Charger 0-25A,12V&24V LiFePO4 Battery Charger for Lithium,Lead Acid,AGM,RV,Marine,Boat, and Deep Cycle Batteries,9 Stage with Pulse Repair,Smart Car Trickle Charger & Maintainer
0-25A across 12V and 24V
Nine-stage charging
Forced mode via six-second hold
Pros
- 25A charging speed in a compact 1.8 lb body
- Settings memory means repeat sessions need no reconfiguration
- Thick charging leads and an active cooling fan
- Pulse repair reported effective on lightly sulfated packs
- Wide coverage from motorcycles to tractors and boats
Cons
- Mains wiring supplied for EU sockets with no adapter
- Requires a six-second button hold to enable powerful mode
- Will not start a battery or revive one below 2V
- Listed warranty description is unclear
Getting 25A out of a 1.8 lb body is unusual, and that is the appeal. It stores in a compartment or a tool bag without taking real space, which matters next to the 3.7 lb E-FAST that also delivers 15A into a 24V bank.
It runs nine-stage charging with three selectable current gears and a battery type selection. The large LCD shows voltage, current, mode, temperature in both Fahrenheit and Celsius, percentage and the active season mode, which is more information than several chargers in this list display at all.
Settings memory is the feature we liked most in day-to-day use. After you configure a 24V lead-acid profile once, repeat sessions need no reconfiguration, so a weekly maintenance routine actually happens instead of being skipped.
The shell is flame-retardant, fireproof, shockproof and corrosion-resistant ABS with a non-sparking design, and protection covers reverse polarity, overcharge, overvoltage and over-temperature. Thick charging leads and an active cooling fan support sustained high-current runs. Pulse repair has been reported effective on lightly sulfated packs.
Two practical notes. The unit arrived wired for EU mains with no adapter, which left some buyers unable to use it at home, and powerful mode requires a six-second button hold that is easy to miss. Minimum working voltage is 2V, and the listed warranty description is unclear.
A good fit for mixed-vehicle households
It fits owners running trucks, boats, tractors, RVs and motorcycles off the same charger, since the wide vehicle range and chemistry selection cover most of what crosses a farm or fleet yard. Compact size means it moves between the truck and the shop without ceremony.
Settings memory makes it a good choice for anyone on a strict maintenance schedule where convenience decides whether the task gets done.
Where it falls short
Check your mains plug arrangement before ordering if you are in North America, because the wiring configuration is a genuine compatibility problem rather than a minor quibble. Powerful mode’s six-second hold is also undiscoverable if you do not read the manual.
It will not start a battery and will not revive one below 2V, so it is a charger for maintenance and recovery of flat-but-not-dead packs.
10. WAVLINK 35-Amp 6V/12V/24V Charger – Best for ECU Flashing and Diagnostics
WAVLINK 35-Amp Smart Battery Charger 6V 12V 24V Auto-Detect Multi-Battery
35A peak with auto detection
Supply mode for ECU flashing
ETL listed
Pros
- High peak output in a portable body
- Supply mode is genuinely useful for ECU flashing and diagnostics
- Pulse desulfation revived a battery written off
- ETL certified rather than only CE and FCC
- Recharged a 310Ah power station battery from 50 percent in about seven hours
Cons
- 35A mode only engages on batteries of 400Ah or larger
- Delivered current falls to around 24A as the unit heats
- Displayed voltage reads roughly 0.5V to 1.0V high
- LCD is hard to read at certain angles and in sunlight
- Only a six-month warranty with imperfect translation
The WAVLINK’s distinguishing feature is supply mode, which delivers low-voltage current when no battery voltage is detected. That is what technicians care about, because it powers ECU flashing, module programming and diagnostic work without needing a separate supply unit on the cart.
Peak output is 35A, and the owner who recharged a 310Ah power station bank from 50 percent in about seven hours is representative of how the sustained output behaves on a real bank. Pulse desulfation has revived a written-off battery. ETL listing is a stronger certification signal than CE and FCC alone, and coverage spans 6V, 12V and 24V lead-acid, AGM, SLA plus lithium and LiFePO4.
Six modes on a seven-stage cycle cover charge, maintain, desulfation, standby, supply and professional. Operating range is -20C to +40C, and protection covers reverse polarity, spark prevention, over-current, over-voltage, short-circuit and backflow.
This is the lowest-rated unit in the line-up at 4.1 stars, with 12 percent one-star ratings, and the reasons are understandable. The 35A headline rarely holds past the first twenty minutes as the unit heats, settling around 24A in a typical room. The manual also states that 35A mode requires batteries of 400Ah or larger, a restriction that is buried in the documentation rather than shown in the listing.
The displayed voltage reads roughly 0.5V to 1.0V high against a reference meter, which matters if you are using it as a diagnostic instrument. Battery leads run warm at 35A, and the warranty is listed at six months in the product copy.
Where it earns its spot
It fits technicians who program modules or flash ECUs as part of the job, because the supply mode removes a piece of equipment from the cart. It also fits shops with very large battery banks where the 400Ah threshold for full output is genuinely met, and it covers 6V for classic vehicles alongside 12V and 24V.
Where the headline does not match reality
Do not buy it for 35A on a normal truck bank. You will get closer to 24A once it warms up, and the mode will not even engage below 400Ah. The voltage reading offset and dim screen make it a poor choice as a precision instrument.
The six-month warranty is also the shortest in the roundup. If you want a verified-output charger with a longer term, the PZ.P carries an 18-month warranty with measured output.
11. NOCO GENIUSPRO50 50A Charger – Best for Dead Batteries and Clean Power
NOCO GENIUSPRO50 50A 6/12/24V Battery Charger & Maintainer
50A at 12V and 25A at 24V
Force Mode charges down to 0V
Ripple-free dual power supply
Pros
- Ripple-free dual-voltage supply clean enough for ECU flashing
- Higher current output than any other portable charger here
- Force Mode charges batteries down to zero volts
- Cables rated to -40C with nylon-braided shielding
- Integrated thermal sensor prevents overcharging and cold-weather undercharge
Cons
- Far more expensive than the portable chargers here
- Bulky at 12.1 lb and 18.2 inches wide
- One-star share of 12 percent is among the highest negative concentrations here
- No Bluetooth or app monitoring despite the professional feature set
This is the only charger here that charges a battery to zero volts, and in a truck application that is sometimes the difference between a recovery and a replacement. Force Mode works alongside the normal path, and dual-voltage support covers 6V, 12V and 24V lead-acid, AGM, gel, SLA, VRLA and LiFePO4 including marine and deep-cycle.
Output is 50A at 12V and 25A at 24V, which puts it well ahead of every portable charger here, and the power supply is described as ripple-free with no noise or voltage spikes. That clean output is why technicians rate it for ECU flashing and diagnostic work, which is a different job from simply charging a battery.
An integrated thermal sensor provides temperature-compensated charging in both directions, preventing overcharging when hot and undercharging when cold. Silicone cables are rated to -40C with nylon-braided shielding, which is real cold-weather durability rather than a claim. Precision pulse charging targets sulfation and acid stratification.
The box contents are unusually complete, with four 6-foot AC cords, a 5-foot DC cable with integrated eyelets, a 10-foot extension and an EVA storage case. That matters for a professional who moves between vehicles and outlets, and the three-year limited warranty is solid.
There is no Bluetooth or app monitoring despite the professional feature set, which is a genuine gap given how much else in this category now reports to a phone. It is also bulky at 12.1 lb and 18.2 inches wide, so it needs real shelf space.
Worth it for professional and severe-duty use
It fits shops and serious enthusiasts who charge batteries that other units cannot reach, especially ones that have sat long enough to drop to zero volts. Twenty-five amps on a 24V bank makes recovery far faster than anything on the consumer side of this roundup.
It also fits anyone who does module programming alongside battery work, since the ripple-free supply is a genuine professional feature rather than a marketing line.
Where the cost is hard to justify
It costs several times more than the portable chargers here, and for a single truck owner maintaining one healthy bank that outlay buys speed you may never use. The 12 percent one-star share is also among the highest negative rating concentrations outside the WAVLINK, which is a fair signal to read the reviews before committing.
If your trucks start reliably and batteries are topped up monthly, one of the 20A smart chargers will serve you for a fraction of the outlay.
12. Associated Equipment 6002B 400A – Best Shop and Fleet Charger
Associated Equipments 6002B 6/12/18/24V 100/80/50/40 Amp 400 Amp Charger Cranking Assist with Wheels
6V, 12V, 18V and 24V at 100/80/50/40A
400A cranking assist, 725A boost
Wheeled chassis at 68.3 lb
Pros
- Only true shop and fleet-class charger here with 400A cranking assist
- Four voltage selections including the rarely offered 18V
- CSA listed for professional shop use
- Fan cooling extends service life under sustained current
- 500 amp fully insulated flexi-spring clamps
- Wheeled chassis makes a 68 lb unit manageable
Cons
- 68.3 lb and 26.5 inches long so impractical for home garage use
- Costs more than every other charger here
- Warranty handled by contacting the manufacturer rather than a stated term
- Older mechanical controls compared with LCD-equipped smart chargers
No other charger covered here does what this does. Rates of 100, 80, 50 and 40 amps across 6V, 12V, 18V and 24V sit alongside 400 amps of cranking assist with a 725 amp manufacturer boost rating and 80 amps of continuous charge, which makes it a shop tool for Class 7 and 8 work rather than a battery maintainer that happens to be powerful.
Voltage selection is unusually broad at 6V, 12V, 18V and 24V, rated 100, 80, 50 and 40 amps depending on the setting. The 18V option is rare and covers older commercial vehicles that most modern smart chargers cannot touch. Clamps are 500 amp fully insulated flexi-spring types, which is the right hardware for cranking assist.

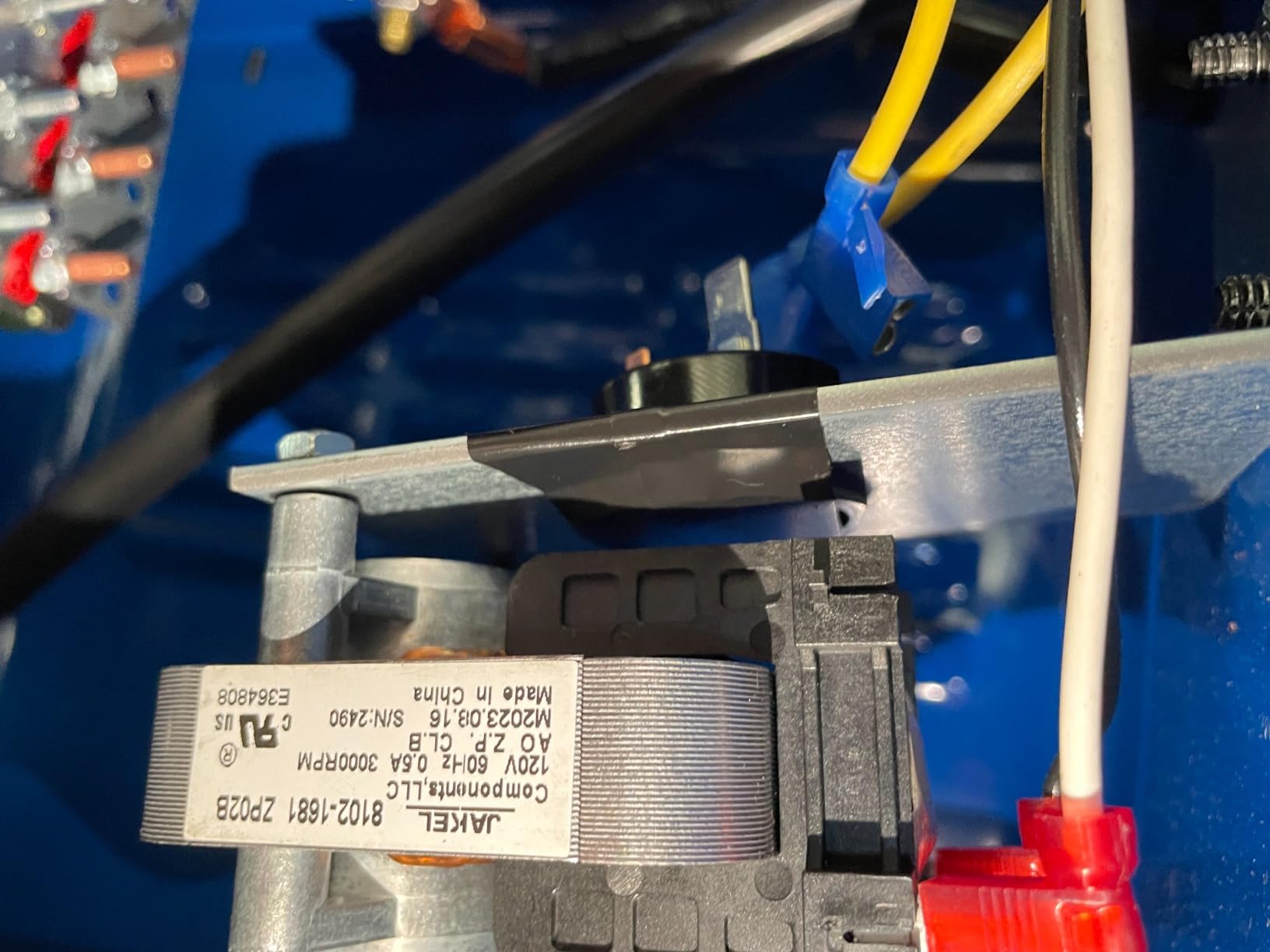

Fan cooling is there to prevent overheating and extend unit life under sustained heavy current, and an automatic timer manages the session. It is CSA listed and made in the USA, which matters when an insurer or a fleet safety audit asks about certification.
The wheeled chassis is not a luxury at 68.3 lb. Owners in repair shops and fleet operations rely on it for cranking assist and multi-voltage charging, and it has the largest installed base in this roundup by age, which tells you something about how it holds up.
Two honest drawbacks. The warranty is handled by contacting the manufacturer rather than a stated term, which is a weaker commitment than the three and five-year terms offered elsewhere in this list. And it is not suited to LiFePO4 lithium packs, so it cannot cover a fleet that has moved to lithium house banks.
Made for a service bay, not a garage
It fits fleet maintenance operations and truck repair shops where diesel cranking assist is a daily requirement and a maintainer simply cannot do the job. At 26.5 inches long and 68.3 lb it needs dedicated floor space and stays where it is put.
It also fits shops still servicing older commercial vehicles that need 18V, and operations where CSA listing and US manufacture are procurement requirements.
Where it does not fit
It is impractical for a home garage and priced out of reach for a single-truck owner. Older mechanical controls mean no display readouts, no lithium chemistry profiles and no app monitoring, so a modern smart charger is more informative even though it is far less powerful.
If you also need clean power for module programming, pair it with one of the supply-capable units rather than expecting both from one box. Fitting the truck with access gear is a separate job too, and our guide to the best running boards for trucks covers that side of the build.
How to Choose a 24V Battery Charger for Trucks
Work through these seven questions in order and the right charger falls out of the answers without guesswork. Most buyers start at step two, which is backwards, because a 400A shop charger is useless if your problem is a battery that needs holding at 5A for eight months.
1. Is the bank 24V, and do both batteries match? Confirm the system voltage first, because a 12V charger on a series pair will not charge it and can lead you to blame a healthy battery. Then check whether the two 12V batteries are the same age and capacity. Mismatched pairs should be charged individually on a 12V profile until they match, because charging them as one unit pushes extra voltage into the weak cell.
2. What job is it doing, maintenance or recovery? Maintenance means holding a healthy bank topped up between trips, and anything from 3A to 10A at 24V does it. Recovery means a bank that has been sitting and needs a real charge, and you want 15A or more at 24V. Cranking assist is a third, separate job that only a shop-class unit with 200A or more of cranking current covers.
3. What is the battery chemistry? Flooded, AGM and gel packs want around 28.8V absorption for flooded and 28.4V for AGM, with float near 27.2V and 27.0V. LiFePO4 wants 29.2V to 29.4V absorption and no float, and ideally a dedicated mode with wake-up current support. A charger that treats lithium as lead-acid will cook it over time.
4. How low does the battery go before you connect it? Minimum starting voltage is the specification most buyers ignore and most regret. Chargers that refuse to work below 1V or 2V cannot help a battery that has sat discharged over winter. If deep recovery is a realistic part of your year, the NOCO with Force Mode down to 0V is the only charger covered here that answers it.
5. What is the smallest battery you will connect? A charger with a 2A or 3A minimum output cannot safely maintain a small sealed battery, and there are documented cases of acid boiling out of a 100Ah SLA unit on a charger that simply had no low setting. If you maintain motorcycles, alarm batteries, backup or UPS batteries, you need a unit with a genuine trickle mode below 2A, such as the 1.75A ITL setting on the PZ.P.
6. Portable, on-board or shop? Portable means a wall-powered smart charger in a garage or van, and it is the category most of the chargers here fall into. On-board means a DC-DC converter that charges an auxiliary battery from the alternator while driving, which is a different installation with heavy gauge wiring and proper isolation from any solar controller. Shop means a wheeled unit that stays on the floor and cranks engines. Mixing these up is the most expensive mistake in the category.
7. What support do you get after it fails? Warranty terms among the chargers here run from six months to five years, and the difference is a direct read on expected service life. A two-year term with CE, FCC and UL marking is a reasonable baseline. Check the plug configuration too, since several of the chargers here arrived wired for EU mains, a mismatch our guide to the best portable chargers for international travel explains in more detail.
Frequently Asked Questions
Do you need a special charger for a 24V battery?
Yes. A 24V truck bank is two 12V batteries in series, so the charger must deliver roughly double the voltage of a car charger to reach the same state of charge. Look for about 28.8V absorption and 27.2V float for flooded lead-acid, slightly lower for AGM, and a dedicated LiFePO4 mode with no float stage. A 12V charger on a 24V bank will simply fail to charge it.
Can I use a 12V charger on a 24V battery?
No, and it is worth understanding why. The output voltage of a 12V charger lands below the combined resting voltage of a series pair, so no meaningful current flows and the bank slowly sulfates. The better approach is to disconnect one 12V battery and charge it individually on a standard 12V profile until both halves of the pair reach the same state of charge, then reconnect.
What should a 24V system be charging at?
A flooded lead-acid truck bank charges at roughly 28.8V during absorption and holds about 27.2V on float. AGM packs want around 28.4V absorption and 27.0V float. LiFePO4 runs 29.2V to 29.4V absorption and should rest rather than float. Temperature compensation adjusts these targets upward in cold conditions and downward when the pack is hot.
How long does it take to charge a 24V truck battery?
It depends on how depleted the bank is and how much current the charger delivers. A 200Ah bank with 100Ah of missing charge needs 100Ah delivered; at 10A of charging current that is a minimum of ten hours, and longer in practice because chargers taper current as the battery fills. A 10A charger and a 25A charger differ by more than two hours on the same job.
How do I choose a 24V battery charger for heavy-duty trucks?
Match the charger to the job rather than to the truck. For maintenance between trips, a 3A to 10A maintainer at 24V is enough. For recovering a discharged bank, want 15A or more at 24V and a low minimum starting voltage. For cranking a diesel, you need a shop-class unit with 200A or more of cranking assist, which is a category of its own.
Bottom Line on 24V Truck Chargers in 2026
After working through all twelve, the Haisito 20-Amp is the best 24V battery charger for trucks for most owners, because it handles 20A at 12V, 10A at 24V, three separate chemistry algorithms and a large display in a package that is easy to store. If a low trickle setting matters to you, the HTRC 20-Amp is the smarter second choice, and if you are working outdoors in cold weather, the NEXPEAK 15-Amp pairs a 4.6 rating with a colour screen that stays readable in direct sunlight.
Beyond that, the choice narrows fast. Big banks and heavy recovery go to the E-FAST at 15A on 24V. Lithium house banks go to the PZ.P, the one unit here with instrument-verified output and a 1.75A trickle setting. Dead batteries that have hit zero volts need the NOCO GENIUSPRO50. And a shop that actually cranks engines needs the Associated 6002B, because no portable charger here reaches 400A of cranking assist.
Whichever you pick, match it to the job rather than the marketing. Confirm the system voltage, check the chemistry, and only buy boost-assist features you will genuinely use on a 24V bank.
