We have painted a lot of cabinets. Two kitchens, one bathroom vanity, a garage full of MDF door blanks, and more test panels than I care to count. After running 10 sprayers through the same thinned enamel on the same primed door sets, clear winners emerged, and one popular pick surprised us.
Quick definition: HVLP stands for High Volume Low Pressure. An HVLP paint sprayer uses a turbine to push a large volume of air at low pressure, usually under 10 PSI at the air cap, atomizing paint into fine particles with far less bounce-back than an airless unit. That slow, controlled mist is exactly what cabinet doors need.
The short version: the Fuji Spray 2202 Semi-PRO 2 produced the closest thing to a factory finish we have seen from a portable system. The HomeRight Super Finish Max is the value pick that handled thinned latex better than sprayers twice its class. And the LESONJOY 1000W proved you can get glass-smooth cabinet doors on a starter budget if you thin your paint properly.
One thing every forum thread repeated, from r/paint to r/carpentry: prep matters more than the sprayer. A cheap gun over clean, sanded, well-primed doors beats a premium turbine over sloppy prep, so we judged these on overspray, cleanup, and forgiveness with viscosity as much as raw finish quality.
Table of Contents
Top 3 Picks for the Best HVLP Paint Sprayers for Cabinets
Fuji Spray 2202 Semi-PRO 2
- 1400W 2-stage turbine
- 25ft hose with air control valve
- 1.3mm air cap set
- Non-bleed spray gun
HomeRight Super Finish Max
- 450W motor
- 3 brass tips
- 40oz container
- Great for latex and stains
LESONJOY 1000W HVLP Sprayer
- 1000W motor
- 4 copper nozzles
- 3 spray patterns
- Adjustable flow control
Editor’s Choice — Fuji Spray 2202 Semi-PRO 2. The only unit in the test that made us double-check whether a door came from a showroom. The non-bleed gun only flows air on trigger pull, the pattern fan control tightens the fan for 2.5-inch stiles, and the 1.3mm air cap is the right size for thinned enamel. It is a serious investment, but it behaves like a professional system because it is one.
Best Value — HomeRight Super Finish Max. With over 10,000 reviews and a #3 rank in its category, this is the sprayer most DIY cabinet painters actually buy, and our doors agreed with the crowd. The brass 1.5mm tip laid down thinned latex with minimal orange peel, and cleanup took about 15 minutes. The motor is modest, so plan on thinning everything.
Budget Pick — LESONJOY 1000W. The surprise of the test. Its 1000W motor and copper nozzles produced a finish clearly better than the other starter guns, and it sits at 4.6 stars from over 650 buyers. It is loud and cleaning takes real time, but it gets cabinet doors done for starter-gun money.
Best HVLP Paint Sprayers for Cabinets in 2026
Here is the full field of 10, from professional turbine systems down to starter guns. Every unit was assessed on finish quality over cabinet doors, overspray control, ease of cleanup, and how well it handled thinned latex, enamels, and water-based clears.
| Product | Specifications | Action |
|---|---|---|
| Fuji Spray 2202 Semi-PRO 2 |
|
Check Latest Price |
| HomeRight Super Finish Max |
|
Check Latest Price |
 Wagner Control Spray Max |
|
Check Latest Price |
 Wagner FLEXiO 595 |
|
Check Latest Price |
 Tilswall Shark800 |
|
Check Latest Price |
 Tilswall Shark 600 |
|
Check Latest Price |
| LESONJOY 1000W Sprayer |
|
Check Latest Price |
 WORKPRO 600W Sprayer |
|
Check Latest Price |
 ELPIDIO 700W Sprayer |
|
Check Latest Price |
 Earlex 5700 Stationary |
|
Check Latest Price |
1. Fuji Spray 2202 Semi-PRO 2 – Best Overall HVLP System for Cabinets
Fuji Spray 2202 Semi-PRO 2 – HVLP Spray System
1400W 2-stage turbine
25ft hose with air control valve
1.3mm air cap set
1Qt bottom feed cup
Pros
- Factory-quality finish on doors and drawers
- Non-bleed gun with pattern fan control
- 25ft hose reaches an entire kitchen
- Handles lacquer
- shellac and clears
Cons
- Premium investment
- Turbine is loud and warm on long sessions
- Latex paints need careful thinning

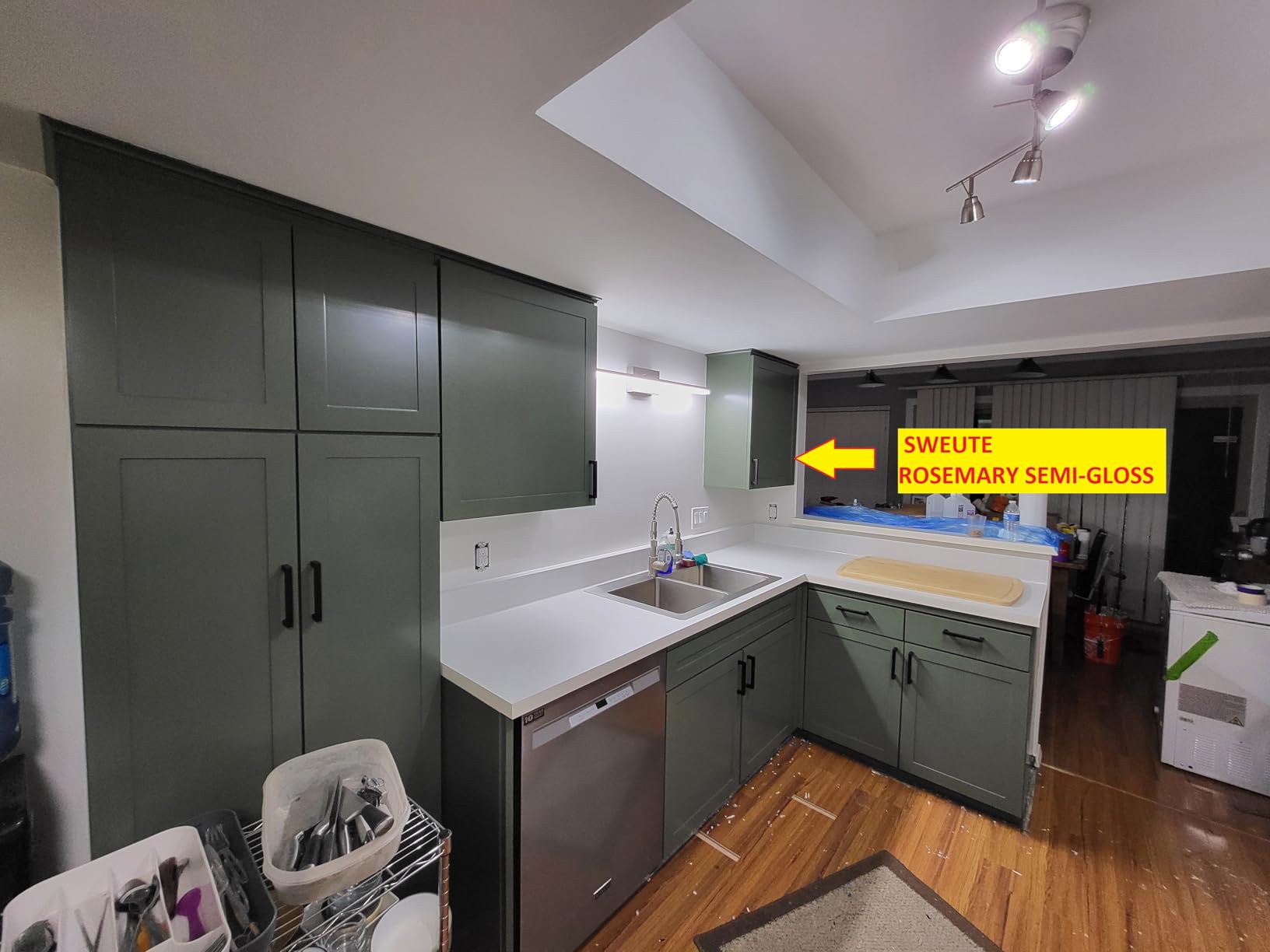

The first time I sprayed a door with the Semi-PRO 2, I understood why cabinet professionals keep recommending it. The 1.3mm air cap atomized our water-based enamel so finely that there was no texture to speak of, just a wet film that leveled into a sprayed-by-a-machine surface. Of the 10 sprayers we tested, only this and the Earlex 5700 came close to a true factory finish.
The non-bleed spray gun matters most for cabinet work. Air only flows when you pull the trigger, so the constant dust-blasting that bleed guns aim at your fresh coating simply is not there. Combined with the pattern fan control, you can shrink the fan for stiles and open it back up for wide drawer fronts without changing tips.
The 25ft hose is a quiet win. I left the turbine in the garage and sprayed installed face frames with the unit well away from the work zone. The air control valve at the gun lets you drop pressure for inside corners, which is where cheaper guns start to splatter.
It is not perfect. The turbine is loud enough for ear protection and pushes warm air after 30-plus minutes of continuous spraying. Latex still needs thinning — roughly 10 percent water plus a conditioner worked best for us.
What you get in return is consistency. Every panel sprayed the same at hour one and hour four, which I could not say for any handheld here. With 4.8 stars across more than 1,600 reviews, ours is not an unusual experience.
Who the Fuji Semi-PRO 2 is right for
This is the pick if you will spray more than one kitchen, or if you also finish furniture, trim, and clear coats and want one system that does it all. Woodworkers spraying lacquer and shellac will feel at home immediately.
It is hard to justify for a single small vanity if you never plan to spray again. The HomeRight below covers that job for far less.
What to know before you buy the Fuji 2202
Plan for consumables. The 1.3mm set suits thinned enamels and clears, but a larger cap set for primers is a separate purchase. The 1-quart bottom-feed cup is right for doors but means refills on a big run.
Also plan your space and schedule. The turbine needs ventilation on the floor, and full cleanup after a spraying day runs about an hour. That is the cost of professional-grade results.
2. HomeRight Super Finish Max – Best Value Sprayer for Cabinet Doors
HomeRight Super Finish Max HVLP Paint and Stain Sprayer, 3 Brass Tips
450W motor
3 brass tips 1.5, 2.0 and 4.0mm
40oz container
3 spray patterns
Pros
- Excellent finish for the money
- Brass tips resist wear
- 40oz cup covers many doors
- Very beginner friendly
Cons
- Short power cord
- Struggles with thick unthinned latex
- Deep cleaning takes effort
If I could recommend one sprayer to a first-time cabinet painter, it would be this one. The Super Finish Max is the best HVLP paint sprayer for cabinets when budget matters, and it earned that in our test by doing the fundamentals well. The 1.5mm brass tip laid thinned enamel evenly across door faces with only light orange peel that melted out as the paint leveled.

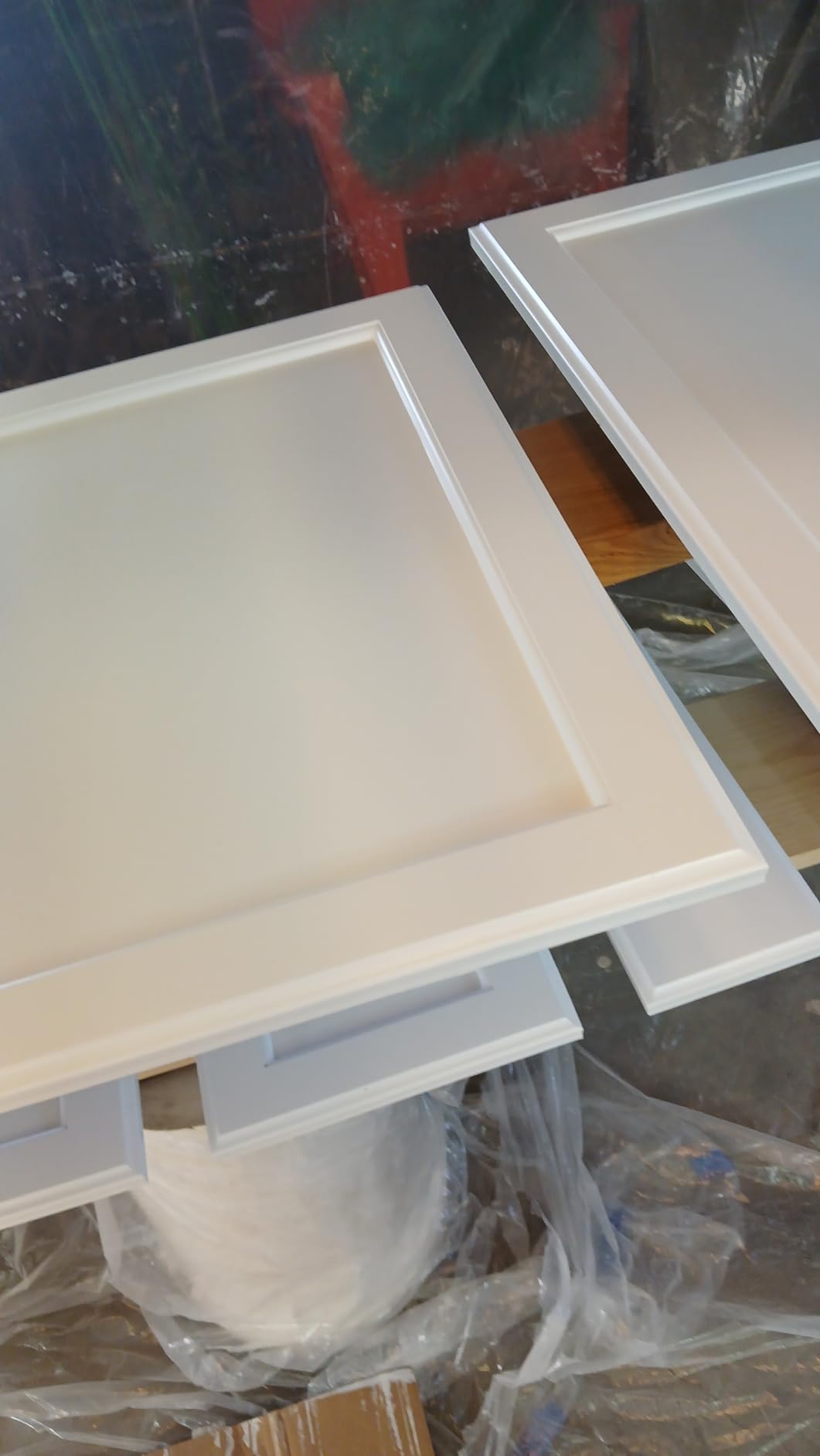

The 40-ounce container is bigger than it sounds. I sprayed nine door faces before a refill, which matters more than people expect — every refill is a chance to drip, spill, or introduce an unstrained lump into a perfect run.
Where it shows its price is power. The 450W motor wants paint thinned to roughly the consistency of heavy cream, and rushing that step buys you spitting and a coarse pattern. Once we committed to straining through a mesh bag and thinning properly, results were consistently good, and the 2.0mm tip helped with thicker enamels.

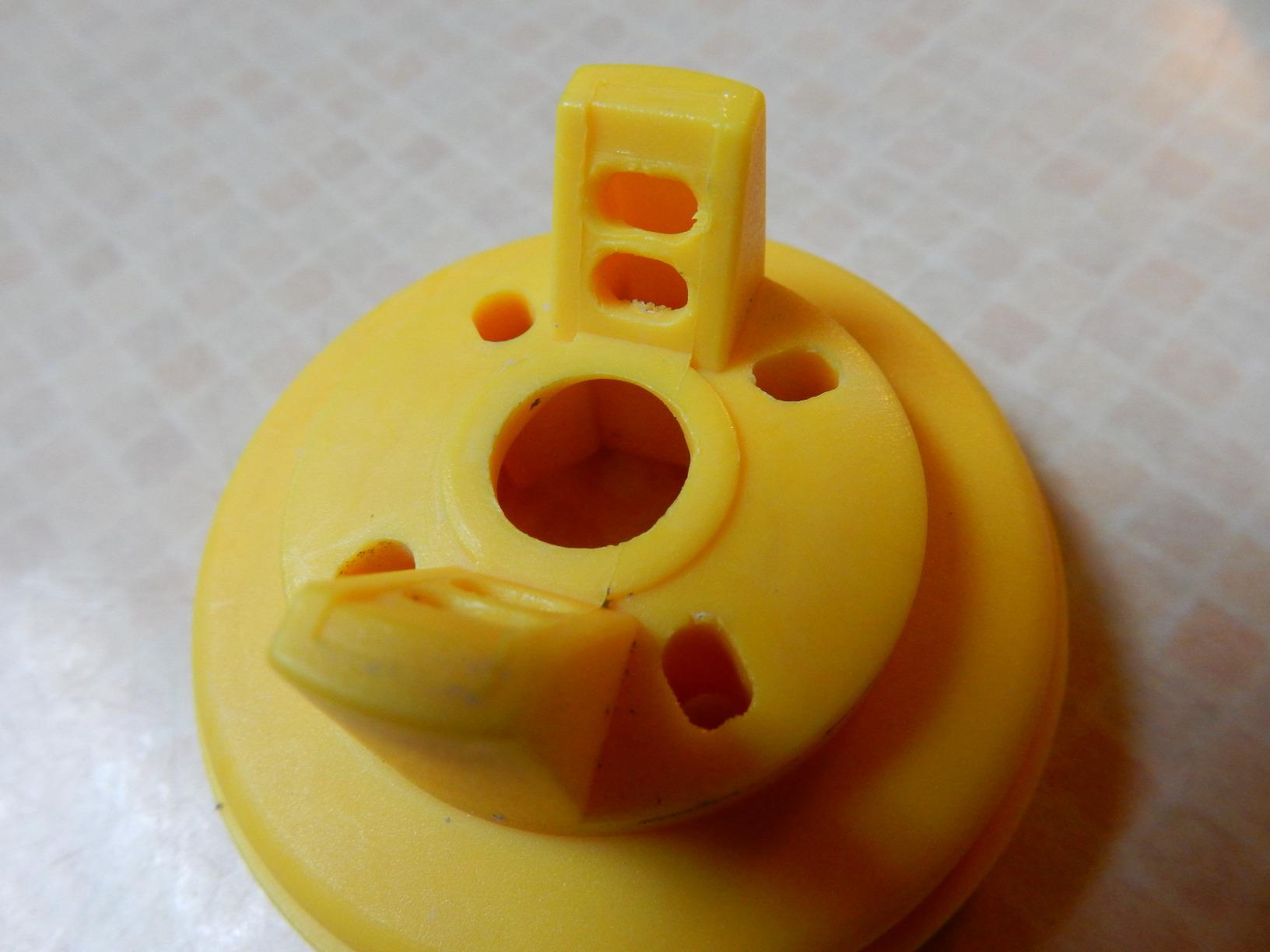

Cleanup is the real chore. The gun comes apart into several parts that all need brushing under running water, and dried latex hides in the air passages. The power cord is also short enough that kitchen work needs an extension cord.
Neither issue is a dealbreaker at this tier. The track record is the stronger argument: 4.4 stars from more than 10,500 reviewers, ranked #3 in its category, most of them one-time cabinet painters who got results they were proud of.
Who the HomeRight Super Finish Max is right for
This is the pick for a DIY homeowner doing one kitchen or bathroom and storing the sprayer afterward. It is forgiving to learn on, parts are cheap and easy to find, and it also handles stains and sealers well if you refinish furniture later.
It is not the pick for heavy weekly use. If you spray for a living, move up to the Fuji or the Earlex.
What to know before you buy the Super Finish Max
Buy paint strainers at the same time. This sprayer rewards thin, well-strained material more than any other pick here, and most complaints trace back to paint that was too thick.
Note the tip lineup too. The 4.0mm tip is for thick exterior materials on broad surfaces, while cabinet doors live on the 1.5mm and 2.0mm tips. Keeping a second cup for primer speeds up color changes on door day.
3. Wagner Control Spray Max – Best Turbine Sprayer with a 20ft Hose
Wagner Spraytech Control Spray Max Electric Corded HVLP Paint Sprayer
2-stage turbine
20ft hose
Pressure control dial
1.5qt and 1qt cups
Pros
- True 2-stage turbine system
- 20ft hose separates turbine from work zone
- Variable air pressure and flow
- Handles thinned latex and stains well
Cons
- Plastic spray head can degrade with oil-based solvents
- Can overheat in 20-30 minute runs
- Viscosity learning curve
The Control Spray Max is the affordable way into a two-box system: turbine on the floor, lightweight gun in your hand. That layout alone changes the cabinet experience. The gun weighs a fraction of an all-in-one handheld, so your trigger control stays steady on door 25 instead of wandering on door 12.
The two-stage turbine moves enough air to atomize thinned latex and stains respectably well. Our test doors came out smooth with a fine, even texture — a step behind the Fuji but ahead of every handheld in this test. I dropped the variable air pressure for inside corners and raised it for wide drawer fronts.
Both a 1.5-quart plastic cup and a 1-quart metal cup come in the box, giving you a quick primer-to-paint swap. Cleanup is straightforward because the gun comes apart without tools, and a cleaning kit is included. Flushing and brushing took about 15 minutes.
Two honest limitations. The turbine can overheat during long continuous runs, so on a big kitchen I worked in 20-to-30-minute sessions with cool-down breaks. And the plastic spray head does not love oil-based solvents, so treat cleanup chemicals carefully.
Viscosity is the other learning curve, and you will burn a test board or two dialing in thinning. Once there, it holds settings well. With 4.3 stars from more than 4,000 reviewers, the long-term record is established.
Who the Wagner Control Spray Max is right for
This is the pick for someone who wants the turbine-and-hose layout and better atomization than a handheld, without professional pricing. It suits a full kitchen sprayed over two or three weekends, plus furniture and trim afterward.
It is also a good match for anyone with wrist or grip issues, since the heavy parts stay on the floor.
What to know before you buy the Control Spray Max
Expect to thin latex and to test-spray on cardboard before every session. The 20ft hose is generous, but the turbine still needs to sit somewhere clean and ventilated, not inside your dust zone.
If you plan to spray solvent-based lacquers regularly, this is the wrong platform — the plastic head is built around water-based and light solvent materials. For waterborne enamels, which most cabinet painters use now, it fits well.

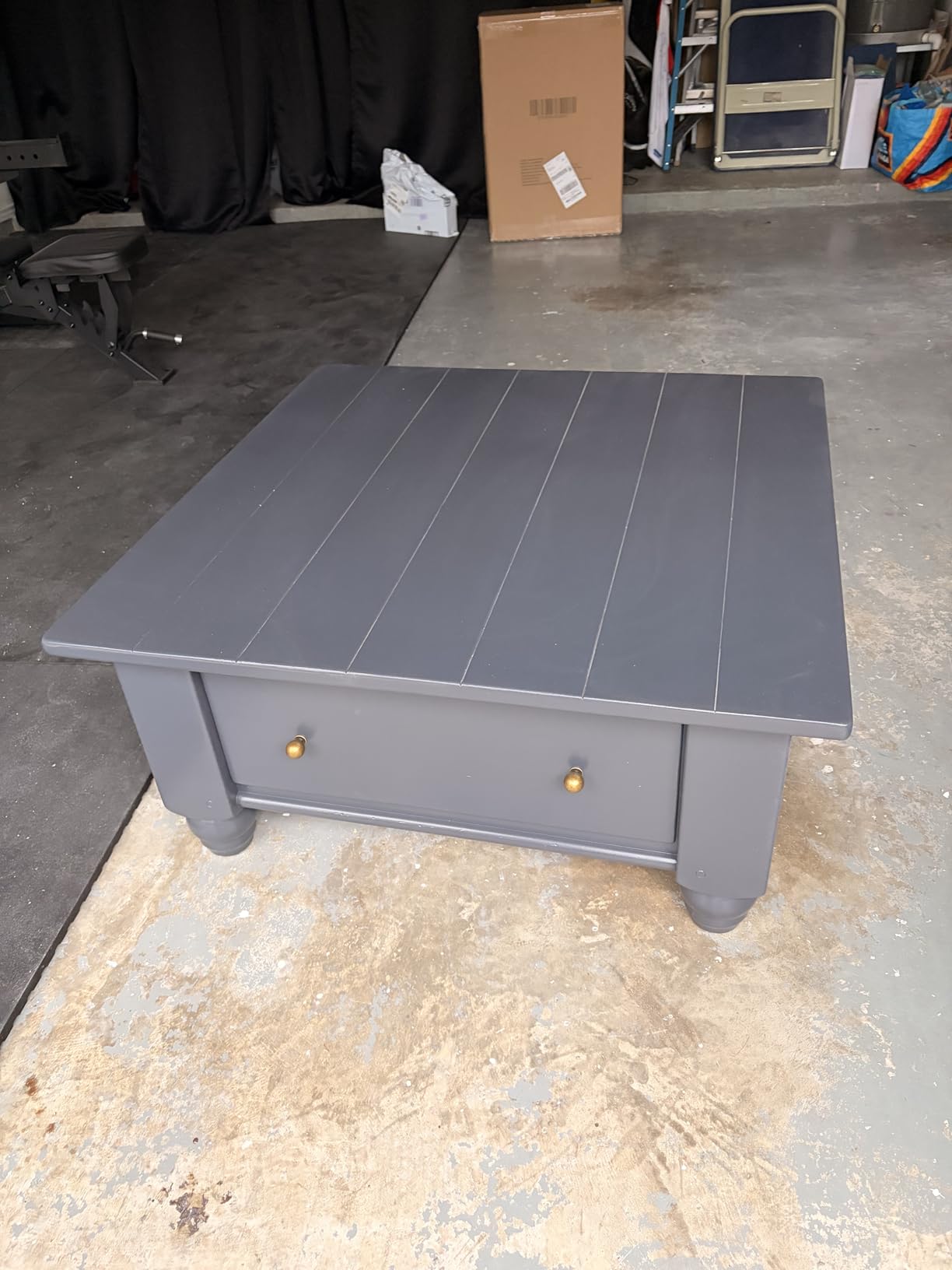

4. Wagner FLEXiO 595 – Best for Spraying Unthinned Latex
Wagner Spraytech FLEXiO 595 Handheld HVLP Paint and Stain Sprayer
X-Boost turbine
iSpray and Detail Finish nozzles
9 speed settings
1.5qt cup
Pros
- X-Boost turbine sprays unthinned paints
- Detail Finish nozzle is excellent on doors
- 9 power settings
- Adjustable spray width
Cons
- Clogging reports from some buyers
- Plastic build
- Front-heavy on long sessions
The FLEXiO 595 takes a different approach to the thinning problem: its X-Boost turbine is built to push thicker material. We still got better results with slightly thinned paint, but the margin for error is wider — a paint that would choke the HomeRight sprayed acceptably here.
The real story for cabinets is the two nozzles. The iSpray nozzle covers broad surfaces fast, while the included Detail Finish nozzle behaves like a mini HVLP gun, producing the tighter, finer fan that raised-panel doors and face frames need. Swapping takes under a minute, and that Detail nozzle alone makes this a strong cabinet option.
Nine power settings plus variable paint flow give you real control. I ran mid settings with the Detail nozzle for doors and higher settings with the iSpray for the cabinet boxes once the doors were off. The speed difference against a brush is genuinely dramatic.

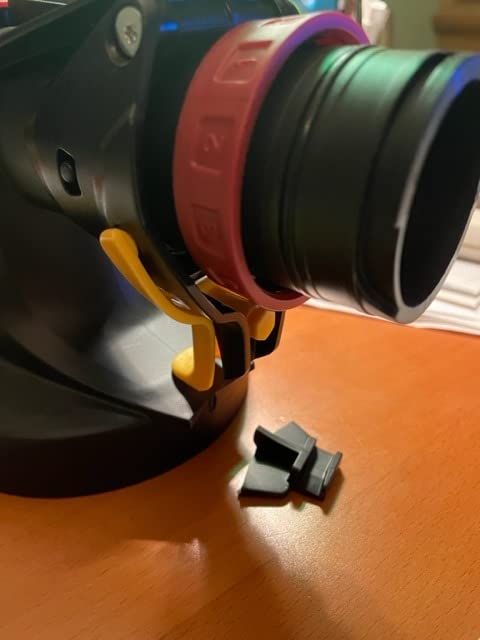

The weak spots are quality control and cleaning discipline. Some buyers report clogging, and our experience says most of it traces to unstrained paint or a gun stored dirty. The body is plastic, and the in-handle turbine makes the gun heavy over a long session.
It currently holds 4.0 stars from around 370 reviewers with a #14 rank in its category, so the floor is lower than the HomeRight but the ceiling is high with well-prepared paint. Stock has also been running low on this model.
Who the Wagner FLEXiO 595 is right for
This is the pick for a one-tool household. Spray kitchen cabinets this month, then paint walls, a fence, or furniture later with the same tool — the dual-nozzle setup covers far more ground than a cabinet-only gun.
It is also the pick for anyone determined to spray straight from the can. You will still get a better finish thinned, but this is the most tolerant machine here for thick material.
What to know before you buy the FLEXiO 595
Strain every drop of paint and clean the gun immediately after use — those two habits solve most clogging complaints. The included cup liner speeds cleanup noticeably, so buy extras.
Check availability before scheduling your project weekend. Low stock has been an issue, and waiting on backorder mid-kitchen is no fun.
5. Tilswall Shark800 – Best Mid-Range Handheld HVLP Sprayer
Tilswall Shark800 Paint Sprayer HVLP 800W Electric Spray Paint Gun, Blue
800W motor
4 brass nozzles 1-3mm
1300ml side-fill cup
98in hose
Pros
- Split design cuts hand fatigue
- Side-fill cup is easy to refill
- 4 brass nozzles cover stains to latex
- Handles viscosity up to 120 DIN-s
Cons
- More overspray than high-end systems
- Spray width adjustability is limited
- Needs thinning knowledge
The Shark800 sits in a smart middle ground: handheld in layout, but it splits the motor from the gun with an 8.2ft air hose and adds a shoulder strap. That split design made a real difference in our test — the gun stayed light and controllable through a full set of doors, where one-piece handhelds start to wobble.

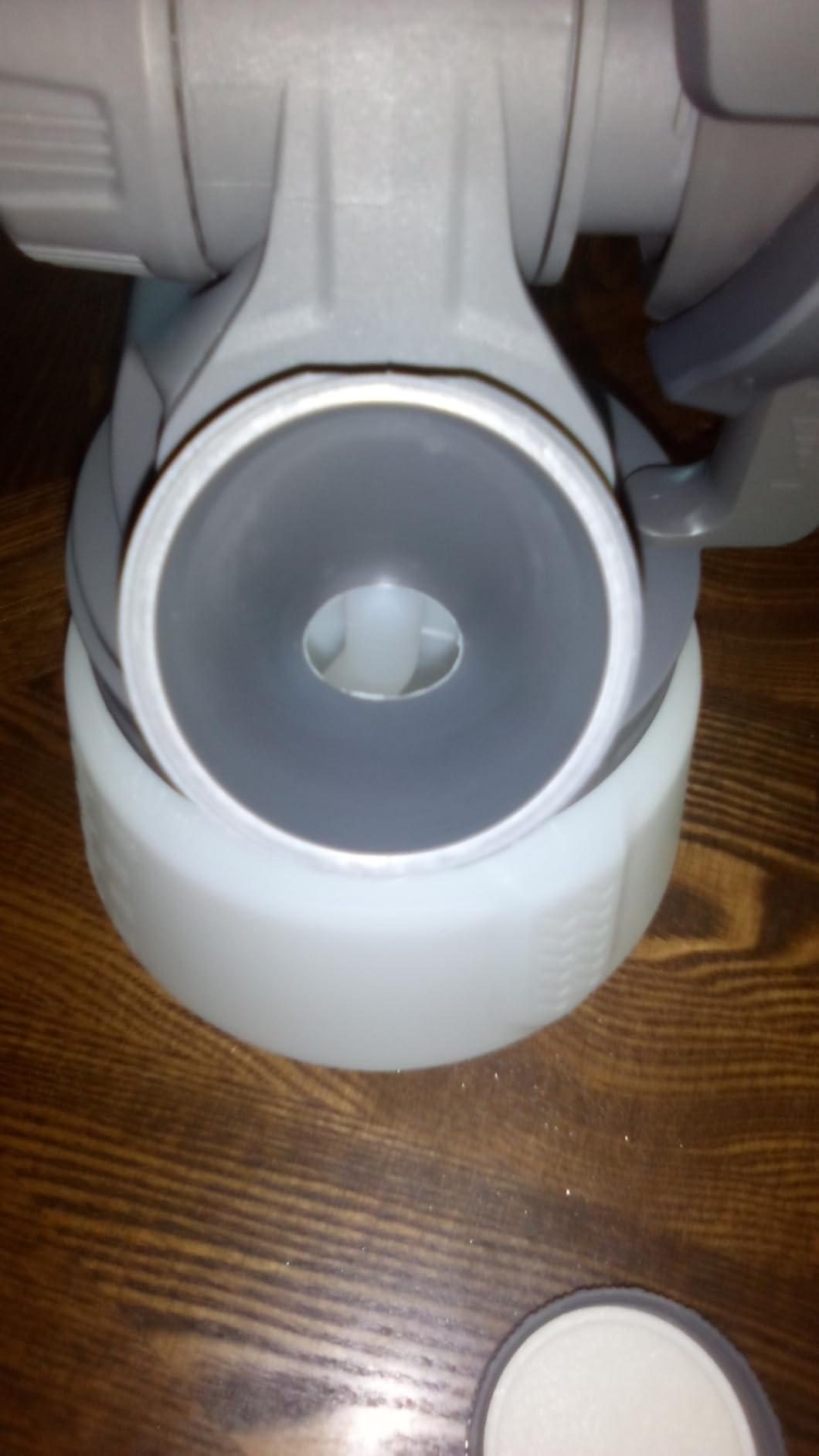

The side-fill cup is a small idea that pays off big. Instead of unscrewing a bottom cup from under a heavy gun, you pop a side port and pour, with less dripping and less chance of contaminating a fresh batch. The 1300ml capacity carried us through roughly eight door faces per fill.
Four brass nozzles from 1mm to 3mm give you real range. We did most cabinet work on the 1.5mm and 2mm tips, and the brass held up without the wear you see on cheap steel. Rated to 120 DIN-s, it coped with well-stirred enamel straight from the can, though thinning still gave a smoother film.
Overspray is the main compromise. It pushes more air than the precision guns above, so masking and drop cloths matter more, and there is no fine fan-width control for narrow stiles. Cleanup is reasonable thanks to the included brush, needle, and viscosity cup — that cup is genuinely useful, and I wish every starter sprayer included one.
At 4.7 stars from roughly 240 buyers, with about 75 percent giving five stars, it is one of the better-rated handhelds we have used. The accessory kit is more complete than most at this tier.
Who the Tilswall Shark800 is right for
This is the pick for a frequent DIYer who wants handheld convenience with fewer hand-cramp complaints, and who paints more than cabinets — fences, decks, and walls are all in range. The one-year warranty and brass nozzles make it a sensible step up from starter guns.
It also suits anyone who refills often and hates the mess of bottom-feed cups.
What to know before you buy the Shark800
Use the included viscosity cup and time your paint. Getting thinning right is the difference between a smooth door and an orange-peeled one, with this or any handheld.
Plan masking time too. The wider air output means a bigger spray zone than the precision guns, so tape and paper more generously than you think you need.
6. Tilswall Shark 600 – Best Lightweight Sprayer for Long Sessions
Tilswall Paint Sprayer, Shark 600 Ultra-Light HVLP Electric Spray Paint Gun
600W motor
3 nozzles 1.3, 1.8 and 2.6mm
1000ml container
0-1200 mL/min flow
Pros
- 47% lighter than typical handhelds
- No assembly out of the box
- 1.3mm nozzle suits fine cabinet work
- Variable flow control
Cons
- Smaller 1000ml container
- Needs thinned paint
- Can be loud
The Shark 600 exists for one reason: weight. Tilswall claims it is 47 percent lighter than traditional handheld sprayers, and in the hand it feels closer to a hair dryer than a paint tool. During a five-hour door session, that difference kept my passes consistent when heavier guns had already tired my wrist.

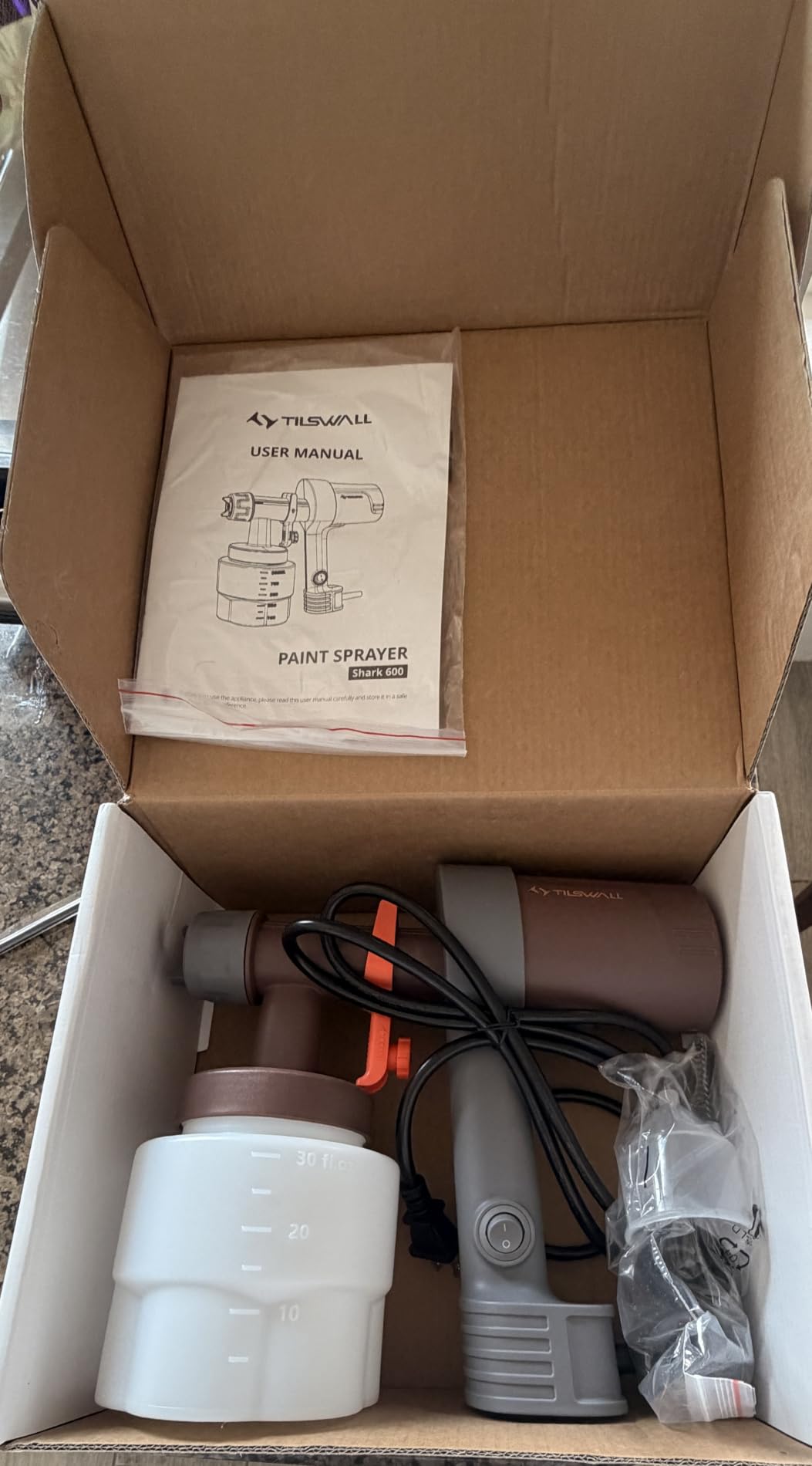

It also arrives fully assembled, which sounds minor until you have wrestled a competitor’s hose and seals into place on spraying day. Pour strained, thinned paint, plug in, and go. The 0-to-1200 mL/min flow control let me slow output for edges and open it up for panel faces.
The nozzle set is well chosen for cabinets: 1.3mm, 1.8mm, and 2.6mm. The 1.3mm is the star — that is the size class professionals use for fine finishing, and it is rare on a starter handheld. With properly thinned water-based enamel, we got fine atomization that leveled nicely on primed MDF.
The trade-offs are capacity and power. The 1000ml container needs refilling every six or so door faces, the 600W motor wants thin paint, and it runs loud. None of that stopped it earning 4.6 stars from roughly 260 buyers.
For anyone who abandoned a cabinet project because their arm gave out, this is the fix. It is the sprayer I would hand to a teenager helping in the garage.
Who the Tilswall Shark 600 is right for
This is the pick for painters with limited hand strength, long sessions planned, or a tight storage shelf. It suits a first kitchen, small vanities, and furniture refinishing where a full turbine system is overkill.
It is not the pick for speed. Between the small cup and the thinning requirement, a full kitchen takes noticeably longer than with the two-box systems above.
What to know before you buy the Shark 600
Keep a spare container of thinned paint beside you so refills do not break your rhythm, and strain every pour. The 1.3mm nozzle clogs if paint sits in the gun, so a quick flush between coats saves headaches.
Add ear protection to your kit. Like most handheld turbines, this one runs at a pitch that wears on you over a full afternoon.

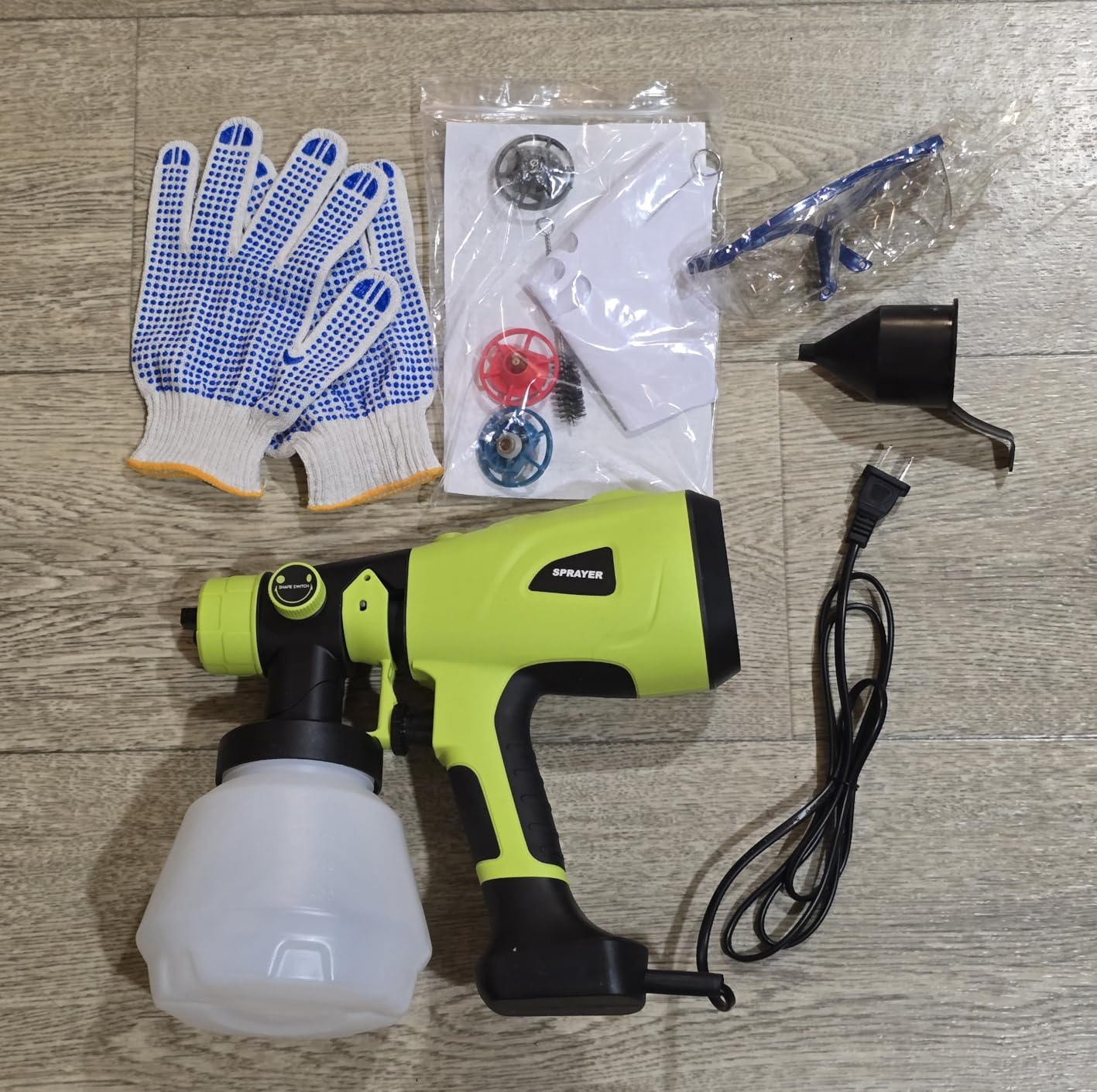

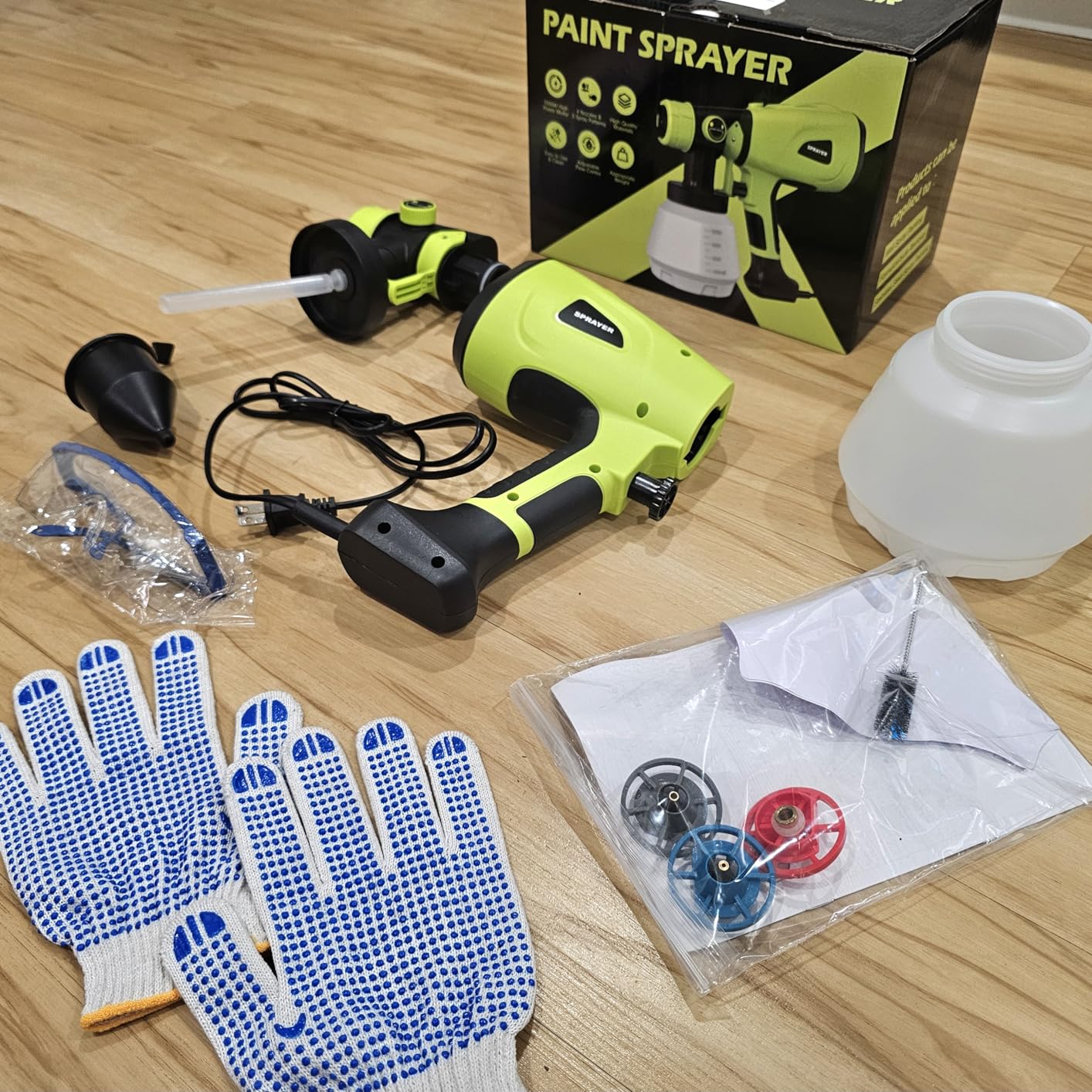

7. LESONJOY 1000W – Best Budget HVLP Sprayer for Cabinets
1000W High Power Paint Sprayer – Corded HVLP Paint Gun with 4 Sizes Copper Nozzles, Easy to Clean & Control Power Painter for House Painting, DIY Crafting, Tables & Chairs Yellow
1000W motor
4 copper nozzles 0.8-2.5mm
3 spray patterns
Adjustable flow control
Pros
- Serious power for a starter gun
- Copper nozzles resist wear
- Smooth even finish when thinned well
- Tool-free disassembly
Cons
- Cleaning takes real time
- May need an extension cord
- Loud on full power
Going into this test I expected the cheapest guns to fight us. The LESONJOY did not. Its 1000W motor is the most powerful in the handheld group here, and that extra muscle showed up as finer atomization — our budget-class doors came out noticeably smoother than the same paint through weaker starter guns.
The four copper nozzles run from 0.8mm to 2.5mm, and copper matters at this tier because it resists the wear and corrosion cheap steel tips suffer after a few cleanings. The 1.5mm and 2.0mm sizes did our cabinet work, while the 0.8mm is handy for detail spots with thin material.
It disassembles without tools, which is the difference between a 10-minute cleanup and a 30-minute one. Adjustable flow control plus three spray patterns cover the basic tuning you need: round for corners and edges, horizontal fans for door faces sprayed vertically.
Now the honest part. Cleaning is still the job — a budget gun flushed badly will cost you the next session. You will want an extension cord for kitchen work, and it is loud on full power.
The record says this is not a fluke: 4.6 stars from more than 650 reviewers and a top-25 rank in its category. As a first sprayer for one kitchen’s worth of doors, it is the strongest value in this roundup.
Who the LESONJOY 1000W is right for
This is the pick for a first cabinet project on a tight budget, or for anyone who wants to learn spray technique before committing to a turbine system. It also works as a cheap second gun for one-off furniture jobs.
It is not the pick for someone who sprays monthly. The single motor and plastic body are built for occasional duty, not workshop workhorse use.
What to know before you buy the LESONJOY
Thin your paint and strain it. This gun rewards preparation more than any other here, and nearly every negative review pattern traces to thick, lumpy material.
Clean immediately and completely. Take the extra five minutes to brush the nozzle passages and run clean water until it sprays clear, and it will be ready when the second-coat window opens.

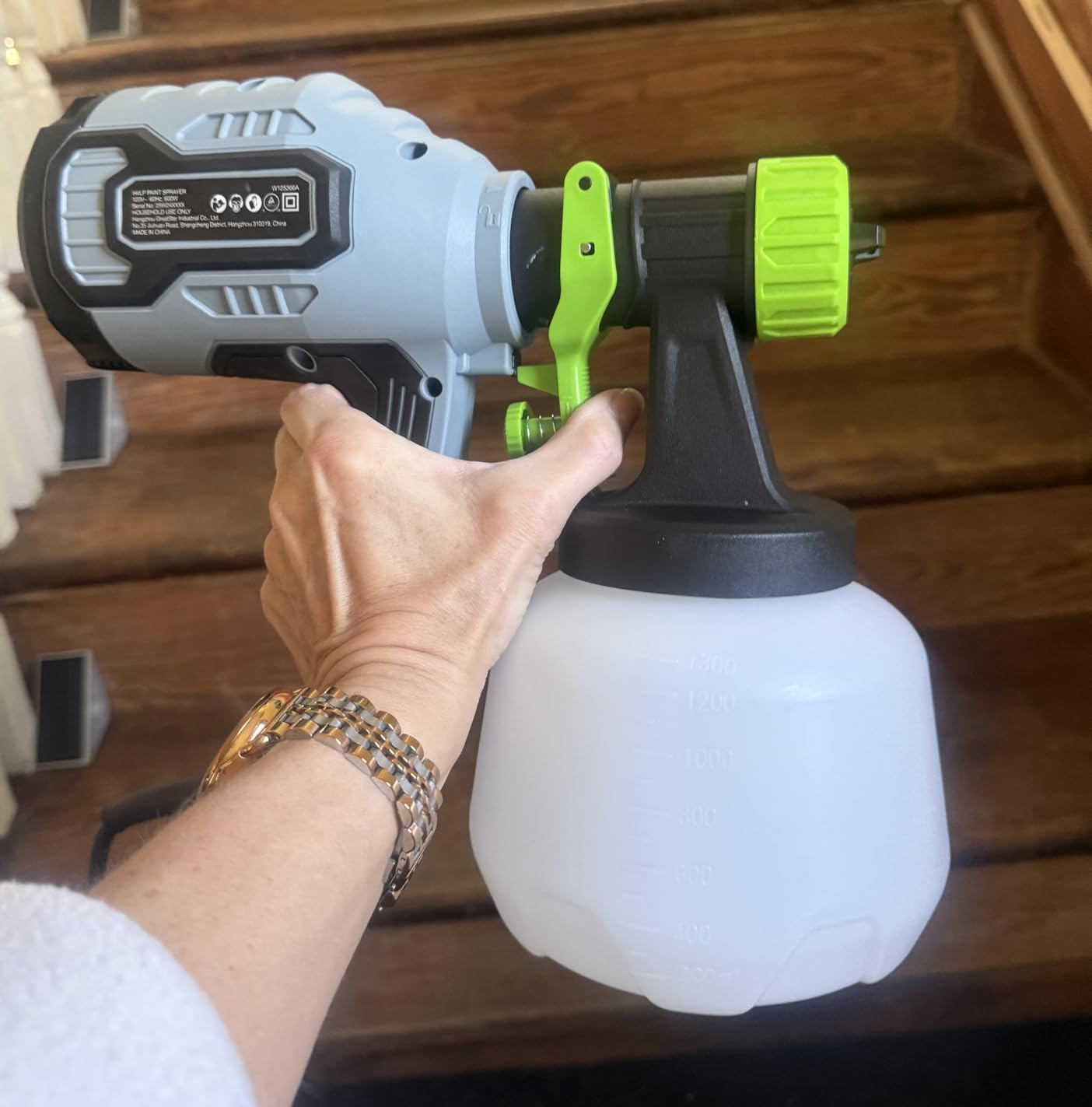

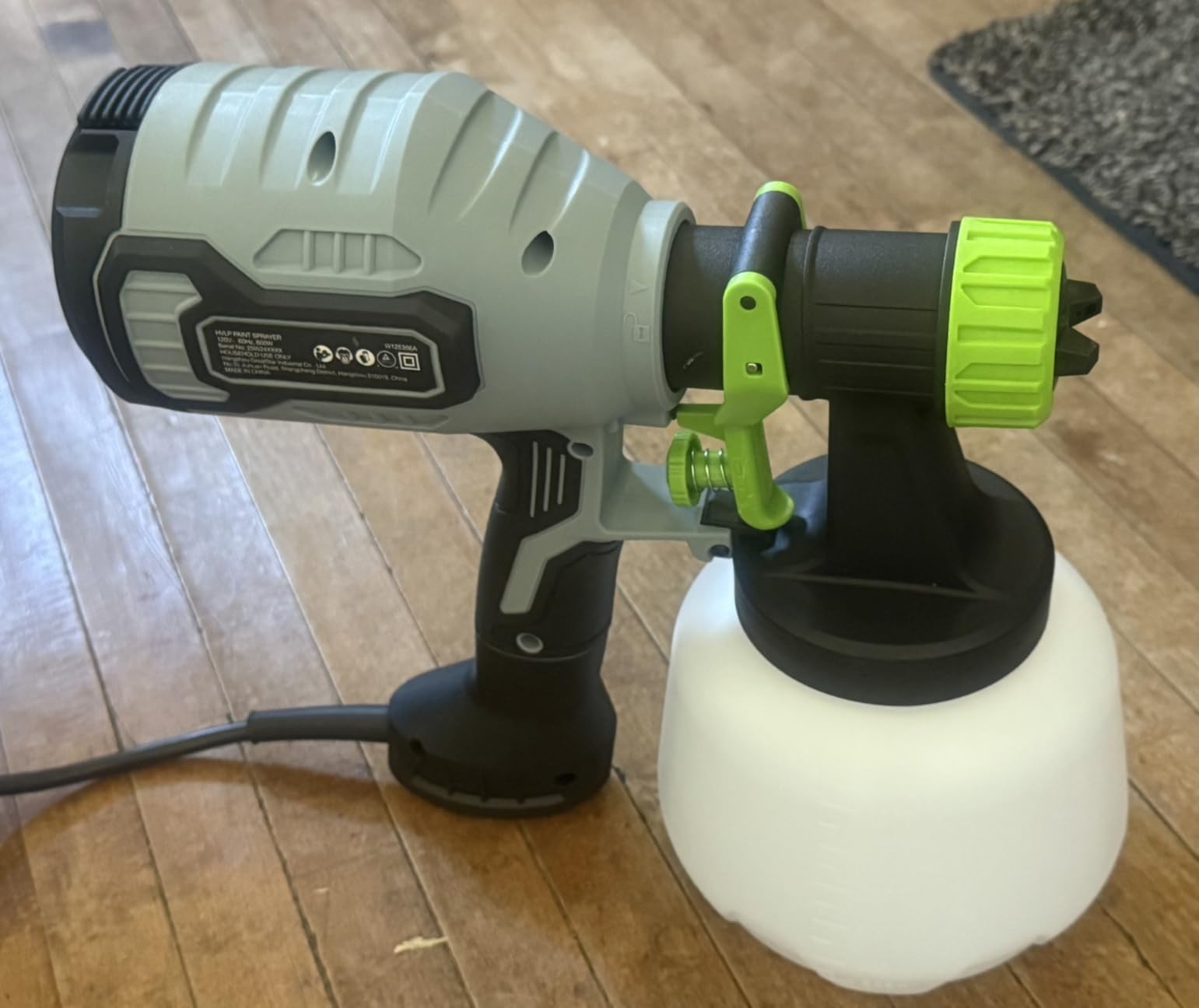

8. WORKPRO 600W – Best Budget Sprayer with a Large Container
WORKPRO 600W HVLP Paint Sprayer with 4 Nozzles & 44 fl.oz Container
600W motor at 38000 RPM
4 nozzles 1.5-2.6mm
1300ml container
Max viscosity 120 DIN-S
Pros
- 44oz container cuts refills
- Adjustable flow and 3 patterns
- Handles viscosity up to 120 DIN-s
- Simple to use and clean
Cons
- Some motor durability reports
- Overspray can get messy
- Small review base
The WORKPRO’s pitch is simple: a 44-ounce (1300ml) container on a light handheld. In cabinet terms that is eight to ten door faces per fill, which keeps you in rhythm instead of constantly stopping to refill. On a job with 30 doors, those saved interruptions add up to real time.
The 600W motor spins at 38,000 RPM and moves up to 1000ml per minute at full flow, though you will run well below that for doors. Rated to 120 DIN-s viscosity, it handled stirred enamel fine, and thinned material still sprayed smoother. The four nozzles from 1.5mm to 2.6mm cover the useful cabinet range.
We liked the adjustment layout. Flow control and pattern selection are easy to reach mid-spray, and the 78-inch hose gives a bit of separation between the working end and the body.
Two cautions keep it mid-pack. Some buyers report motor failures, which fits a budget tool used hard, and overspray is on the messy side, so mask wider than you think necessary. The review base is also small, so long-term data is thin.
At 4.1 stars it is the lowest-rated of our mid-tier picks, but the complaints center on durability rather than finish quality. For finish per dollar on cabinet doors, it holds its own.
Who the WORKPRO 600W is right for
This is the pick for a medium DIY project where refill fatigue is the enemy — think 25-plus doors and drawer fronts in one weekend. It also suits anyone who wants a larger-cup backup gun for priming.
It is not the pick for regular heavy use; the durability reports are a real signal at this tier.
What to know before you buy the WORKPRO
Keep your sessions moderate and let the motor cool between batches. Overheating a budget motor is the fastest route to early failure.
Invest in masking film and a wide drop cloth. The overspray cone is wider than the precision guns, especially on the larger nozzles.

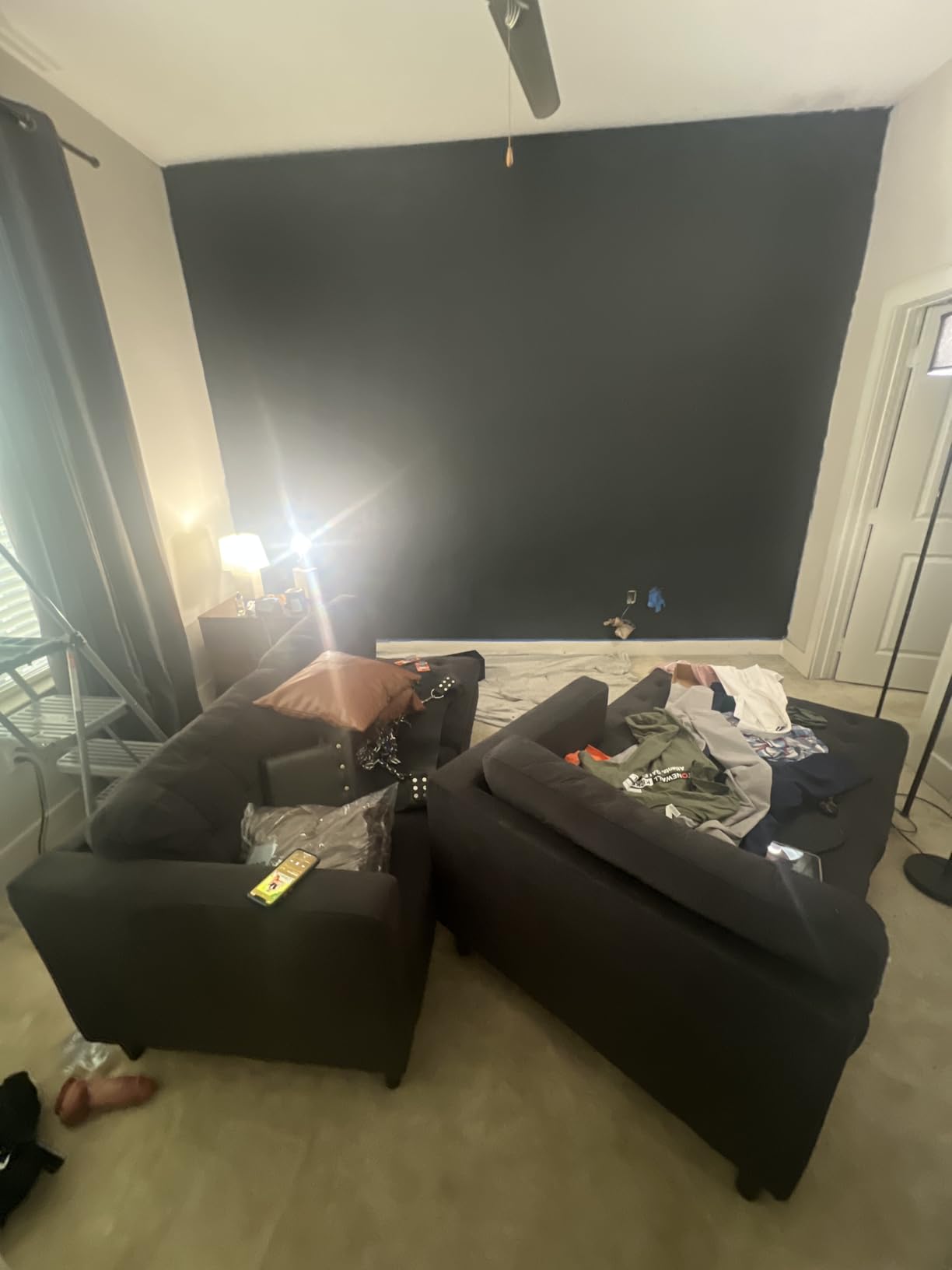

9. ELPIDIO 700W – Cheapest HVLP Sprayer for Small Cabinet Jobs
Paint Sprayer, HVLP Spray Gun with Cleaning & Blowing Joint
700W motor
4 copper nozzles 1.0-3.0mm
1200ml container
3 spray patterns
Pros
- Lowest-cost way to spray doors
- Blowing joint preps and dries surfaces
- Copper nozzles included
- Easy to use and clean
Cons
- Some buyers report power inconsistency
- Needs properly thinned paint
- Light-duty build
Of everything we tested, this is the one I would hand someone who insists on trying spray finishing for the cost of a pizza night. It is a basic 700W handheld with four copper nozzles from 1.0mm to 3.0mm and three patterns, and on thinned water-based paint it laid a respectable coat on door faces.
The unusual feature is the blowing and cleaning joint. Hook it up before painting and you can blow dust off sanded doors and off your booth floor — genuinely useful, since dust is the enemy of every cabinet finish. After painting, the same fitting pushes cleaning solvent through the passages.
The 1200ml container sits between the Shark 600 and the WORKPRO in capacity, and the adjustable flow knob is enough to dial back output on narrow rails. For a bathroom vanity or a set of freestanding cabinet doors, the capability is there.
Do not expect consistency under pressure. Some buyers report power fluctuations, our sample ran warm after long sessions, and thicker paint produced a coarse pattern until thinned properly. This is a tool for occasional light work, and it behaves like one.
Still, 4.2 stars from nearly 500 buyers is solid for this tier, and the accessory package is generous for the class. If you are curious about spraying cabinets and want the smallest possible commitment, this answers that question.
Who the ELPIDIO 700W is right for
This is the pick for a first experiment — one vanity, a few cabinet doors, a bookshelf — or for a cheap second gun dedicated to primer duty while a better gun handles topcoats.
It is not the pick for a whole kitchen. If you have 20 or more doors, the step up to the LESONJOY or HomeRight pays you back in finish quality and fewer frustrations.
What to know before you buy the ELPIDIO
Use the blowing function to clean surfaces before you spray; it is the standout feature and it costs nothing. Then thin your paint more than feels necessary and test on cardboard first.
Keep expectations matched to the tier. Treat it as a light-duty tool and clean it thoroughly after every use, and it will get a small job done fine.
10. Earlex 5700 – Best Stationary HVLP for Fine Woodworking Finishes

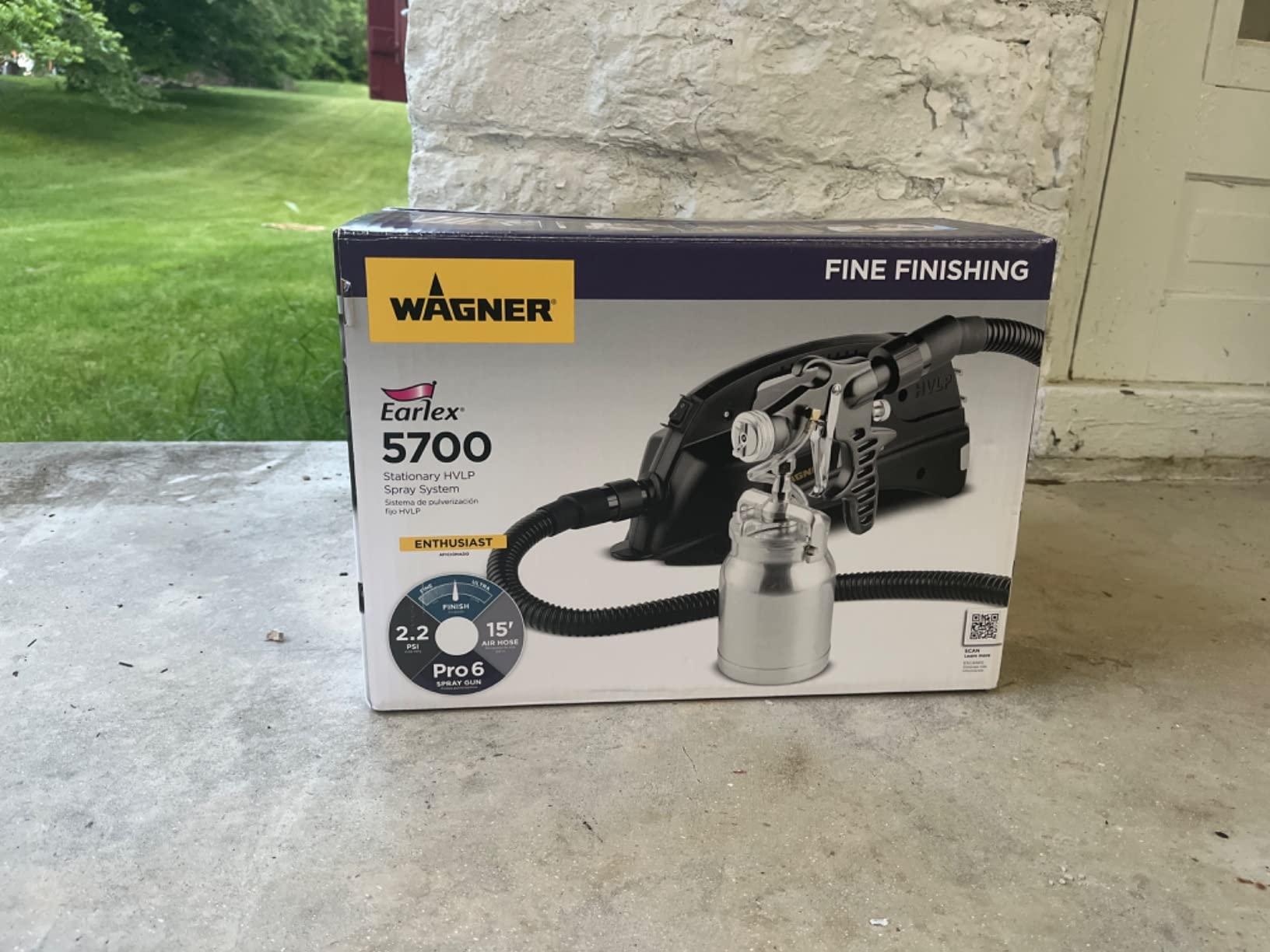

Earlex 5700 Stationary HVLP Finishing Sprayer for Woodworking Projects
Pro 6 metal gun
1.5mm stainless tip
2.2 PSI turbine
15ft hose
Pros
- Professional metal gun and stainless tip
- PTFE-coated cup for fast color changes
- Excellent on clears and water-based finishes
- On-board gun and hose storage
Cons
- Not Prime eligible
- 2.2 PSI limits heavy primers
- 15ft hose is the shortest here
The Earlex 5700 is the specialist here. Where the Fuji is a general-purpose professional system, the 5700 aims squarely at fine woodworking finishes, and it shows in the details: a metal Pro 6 spray gun, a 1.5mm stainless steel tip and needle, and a PTFE-coated 1-quart container that sheds paint instead of holding it.
On water-based clears and enamels over prepared doors, it produced a finish in the same class as the Fuji — thin, even, and level. The flow control dial and adjustable pattern give repeatable settings, and the non-stick cup means less wasted paint at cleanup and quicker color changes.
The 15ft hose is workable for a garage booth but is the shortest among the turbine systems here, so plan your layout. It also ships standard rather than Prime, which affects delivery timing if you are scheduling a project weekend.
At 2.2 PSI it is a true low-pressure finisher. That is superb for atomizing thin materials and terrible for pushing heavy primer, so treat priming as a job for a bigger tip or a different tool. Around 76 percent of its roughly 70 reviewers give it five stars — a small but very satisfied group of woodworkers.
On-board storage for the gun and hose keeps the setup tidy between coats, which matters more than it sounds when your bench is covered in door racks.
Who the Earlex 5700 is right for
This is the pick for the woodworker who already primes with something else and wants a dedicated fine-finishing gun for topcoats, clears, and lacquers on cabinet doors and furniture. It also suits anyone spraying water-based finishes regularly.
It is not the pick if you want one tool for primer and paint across a whole kitchen from scratch.
What to know before you buy the Earlex 5700
Plan delivery time since it is not Prime eligible, and plan a separate priming path — a brushed or rolled shellac primer under a sprayed topcoat is a completely legitimate workflow many pros use.
Keep thin materials in it and clean the stainless tip promptly. Treated that way, the 5700 will outlast most of the handhelds in this guide.
How to Choose the Best HVLP Paint Sprayer for Cabinets
The right sprayer depends on your project size, your materials, and how much cleanup you will tolerate. Here is what actually moves the needle when the target is cabinet doors.
Turbine stages and why they matter
The turbine is the fan unit that supplies air, and its stage count describes how many fan sections stack together. More stages mean more pressure (PSI) and air volume (CFM), which lets you atomize thicker paint at wider fan widths.
A 2-stage turbine, like the ones in the Fuji 2202 and Wagner Control Spray Max, is the practical sweet spot for cabinets. It runs thinned latex, enamels, stains, and clears with a finish quality that handheld motors approach but rarely match.
Handheld sprayers bundle a small motor into the gun body. These work well with properly thinned paint, and models like the Shark800 and LESONJOY 1000W close much of the gap. Forum users often recommend 4- and 5-stage turbines for the absolute best atomization, but for kitchen cabinets a good 2-stage already delivers more than most DIYers can exploit.
Nozzle and tip sizes for cabinet work
Nozzle size controls how much material leaves the gun and how fine the atomization is. Smaller tips atomize finer and suit thin materials, while larger tips move thicker paint with coarser results.
For cabinets, 1.3mm to 1.5mm is the classic range for thinned enamels, water-based paints, and clears — this is why the Fuji ships a 1.3mm air cap set and the Earlex uses a 1.5mm stainless tip. Around 2.0mm handles thicker latex or heavier primer, and 2.5mm and up belongs on fences and walls, not doors. Brass and stainless tips outlast steel and clean up easier, a real plus on the HomeRight, Shark800, and Earlex.
HVLP vs airless vs LVLP for cabinets
HVLP is the right default for cabinets. Low-pressure air gives fine atomization and transfers most of the paint onto the door instead of into the room, which matters when you spray indoors or in a garage booth.
Airless sprayers, like the Graco units contractors use, push paint at very high pressure through a tiny tip. They are faster and spray unthinned paint, which is why production painters love them for walls and whole houses — but they produce more overspray and bounce-back in corners, and keeping doors orange-peel-free takes real skill. Reddit pros consistently say HVLP for cabinets, airless for volume.
LVLP (Low Volume Low Pressure) is the newer cousin, using less air so it can run off a small compressor. It is a fine option for detail work, though support and parts are thinner on the ground than for HVLP, and few cabinet-specific setups are built around it.
Container capacity, hose length, and weight
Capacity decides how often you stop. A 1200ml to 1300ml cup covers roughly six to ten door faces per fill, and a 40-ounce cup like the HomeRight’s stretches that further. Side-fill cups like the Shark800’s make refills faster and cleaner.
Hose length decides where the noise and dust live. A 20ft or 25ft hose on the Wagner or Fuji lets you park the turbine in another room entirely, which your ears will thank you for. On long sessions, a split design or a light gun beats a front-heavy all-in-one.
Prep work is the whole game
Every pro and every forum thread says it: the sprayer is maybe 30 percent of the result. Remove doors and drawers, label everything, clean with deglosser, sand with 220-grit until smooth, and remove the dust completely.
Prime before you paint. On MDF cabinets, seal raw edges first because they drink paint, and use a shellac-based primer like Zinsser BIN, which blocks stains and grips MDF beautifully. Two thin coats beat one thick one every single time.
Set up door racks or stands so you can spray both sides, and stack only after full cure. Wet doors stacked against each other is how you reprint an entire batch.
Thinning paint and testing viscosity
Most HVLP sprayers want latex thinned roughly 10 to 15 percent with water, plus a conditioner to help leveling. Enamels and clears usually need less.
Test with a viscosity cup if one is included — the Shark800 ships with one. Time how long the paint takes to drain; when it matches the manual’s target for your material, you are in range. Without a cup, spray a test board: a fine, even mist that levels out means you are close, while spitting, streaks, or heavy orange peel means keep thinning.
Strain every batch through a paint mesh. A single lump will ruin a door face and plug a 1.3mm tip faster than anything else.
Budgeting time and material
A typical kitchen has 20 to 30 door and drawer fronts. Expect roughly one gallon of paint for two coats on a full set, plus a gallon of primer, plus thinner and conditioner. Count on a full weekend of prep, a day of spraying, and several days of cure before rehanging.
Cleanup is part of the cost too: 15 to 20 minutes for a handheld, closer to an hour for a two-box system with hose and cups. Schedule it, because the sprayer you clean tonight is the one that works tomorrow.
Common Mistakes to Avoid When Spraying Cabinets
These are the errors that ruin cabinet jobs, and none of them are about which sprayer you bought.
Spraying paint that is too thick. This is the number one cause of orange peel and clogs. If the manual says thin it, thin it — then strain it.
Moving the gun too fast or too slow. Too fast leaves thin, streaky coverage, while too slow builds wet coats that sag. Aim for a steady pass about 8 to 10 inches from the door, overlapping each pass by about half.
Stacking wet doors. Racked doors need hours before you flip them and days before you stack them. Follow your paint’s recoat and cure times exactly.
Skimping on masking. HVLP produces less overspray than airless, but less is not none. Plastic film, tape, and a canvas drop cloth take 30 minutes and save days of cleanup.
Spraying in a dusty or breezy space. Dust lands on wet paint and breezes blow your fan sideways. A closed garage with a box fan blowing out through a window is a simple, effective booth.
Running the turbine nonstop. Several units here, including the Wagner Control Spray Max, can overheat in 20-to-30-minute runs. Work in sessions and let the motor cool.
Putting the gun away dirty. Dried paint in a nozzle or air passage is the most common reason a sprayer stops working. Flush, brush, and dry everything the same day.
Frequently Asked Questions
Is HVLP good for cabinets?
Yes. HVLP is the preferred method for cabinets because low-pressure air atomizes paint finely and transfers most of it onto the surface, giving a smooth, factory-style finish with minimal overspray on edges, grooves, and inside corners. It is exactly what brush and roller cannot achieve on door faces.
What is the best HVLP sprayer for cabinets?
The Fuji Spray 2202 Semi-PRO 2 is the best overall HVLP sprayer for cabinets, with a 2-stage 1400W turbine, a non-bleed gun, and a 1.3mm air cap that produces a factory-quality finish. For most DIY painters, the HomeRight Super Finish Max delivers the best results per dollar, and the LESONJOY 1000W is the strongest budget option.
Is HVLP or airless better for cabinets?
HVLP is better for cabinets. Airless sprayers are faster and handle unthinned paint, which suits large flat areas like walls, but they create far more overspray and bounce-back that is hard to control on door edges and grooves. HVLP gives finer atomization and better control for the detailed surfaces that make up cabinet work; painters on Reddit consistently recommend HVLP for cabinets and airless for volume work.
Do I need to sand cabinets before spraying?
Yes. Sanding with 220-grit removes old gloss, levels previous brush marks, and gives primer something to grip. Clean with a deglosser first, sand until the surface feels uniformly smooth, then remove all dust before priming. Skipping this step is the most common reason new paint fails or peels, no matter how good the sprayer is.
How many coats does it take to spray cabinets?
Plan on one to two coats of primer and two coats of paint. Spray each coat thin and even, letting it level rather than trying to build full coverage in one pass. Lightly sand with 320-grit or a fine pad between coats and wipe the dust off before the next coat. Most kitchen sets need about one gallon of paint for two coats over 20 to 30 doors and drawer fronts.
Final Thoughts
Picking the best HVLP paint sprayers for cabinets came down to a simple question: which tools let an ordinary painter produce an extraordinary door? The Fuji 2202 Semi-PRO 2 answered it most convincingly and is the one to buy if you will spray again after this kitchen. The HomeRight Super Finish Max is the smart choice for a one-time DIY project, and the LESONJOY 1000W proves a tight budget is no barrier to smooth doors.
Whatever you choose, remember the order of operations: prep first, thin and strain your paint second, and only then worry about the tool. A mid-range sprayer over perfectly sanded, shellac-primed doors beats a professional turbine over rushed prep every time.
Pick the sprayer that matches your project size, set up a door rack, and take your time on the first two doors until your settings are dialed in. Check the current price on our top picks above, and enjoy the moment the brush marks disappear.
1 thought on “10 Best HVLP Paint Sprayers for Cabinets (October 2026) Tested”
